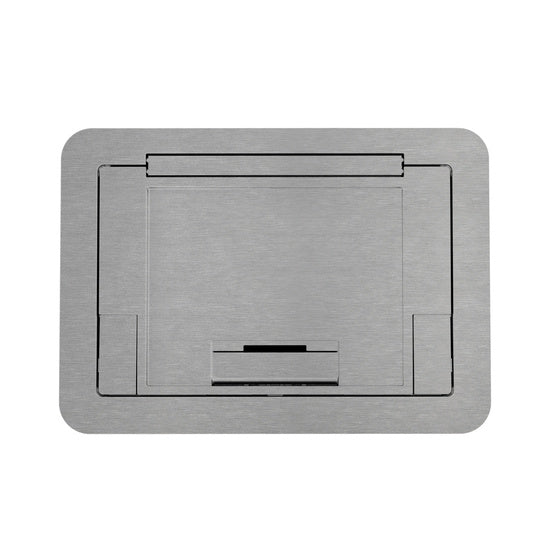

Evolution™ EFB45 Flush Style Cover with Floor Insert in Brushed Aluminum
Flush-style brushed aluminum floor cover with recessed insert, designed for EFB45S floor boxes
The Wiremold EFB45 is a low-profile, flush-style cover designed to attach to EFB45S style floor boxes. Constructed from die-cast aluminum, this cover features a durable hinge that allows the unit to rotate 180° for service. It includes a 1/4" deep recessed area specifically engineered to accept a finished floor covering, allowing the assembly to sit flush with carpet, tile, or wood. The unit is equipped with two slide egress doors that automatically close around cables when the cover is shut and can lock in the open position. For installations involving polished concrete or terrazzo, the EFB45-CTR ring must be used to achieve a flush finish; please note that this ring is sold separately. This TAA compliant component is available in several finishes, including this brushed aluminum option.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Color | Brushed Aluminum |
| Cover Style | Flush |
| Receptacle Type | Standard |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
Will this cover sit flush with my finished flooring?
This cover is designed to sit flush with carpet, tile, and wood. For polished concrete or terrazzo floors, you must use the EFB45-CTR ring, which is sold separately.
What is required to install this with EFB45S floor boxes?
This SKU is a cover and insert meant to attach to EFB45S style floor boxes. You will need to have the EFB45S floor box installed to use this component.
How do the egress doors work for cable management?
The cover features two slide egress doors that automatically close around cables when the cover is in the closed position and can be locked in the open position.
Is this product TAA compliant for government projects?
Yes, this specific brushed aluminum cover (EFB45CTAA) is TAA compliant.
What are the other finish options for the EFB45 series?
In addition to brushed aluminum, the EFB45 is available in black (BK), gray (GY), bronze (BZ), satin brass (SB), and satin nickel (SN) finishes.
