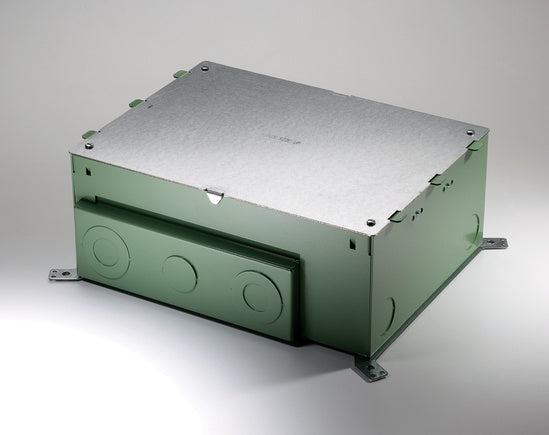

EFB8S-OG Evolution™ Eight Gang On-Grade Floor Box
Eight gang on-grade floor box for concrete applications, featuring an epoxy coating to eliminate the need for extra vapor barriers
The Wiremold EFB8S-OG is an Evolution Series Eight Gang On-Grade Floor Box designed for installations in both on-grade and above-grade concrete floors. This specific model features an epoxy coating, which allows installers to place the box in on-grade applications without requiring an additional vapor barrier. To assist with the ease of plugging and unplugging devices, the unit is manufactured with a fully finished interior. This green-finished floor box is engineered to work with standard-size wall plates to accommodate eight gangs of capacity. For complex projects requiring specific configurations, custom options are available upon request. This TAA compliant assembly is suitable for professional submittals in environments requiring specific compliance standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 16.13 in (41 cm) |
| Height | 6 in (15.2 cm) |
| Width | 12.75 in (32.4 cm) |
| Grade Type | On Grade |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
| Color | Green |
Resources
Questions about this part
What kind of floor application is the EFB8S-OG for?
This is an on-grade floor box designed for both on-grade and above-grade concrete applications.
Does this floor box require a vapor barrier in concrete?
No, the epoxy coating on this unit allows it to be installed in on-grade applications without an additional vapor barrier.
What size wall plates are compatible with this EFB8S-OG box?
The EFB8S-OG is designed to work with standard-size wall plates for eight gangs of capacity.
Is the EFB8S-OG TAA compliant?
Yes, this product is TAA compliant.
Where can I find submittal drawings for this floor box?
You can access the EFB Series Evolution Floor Boxes PDF and other technical documents in the Resources tab.
