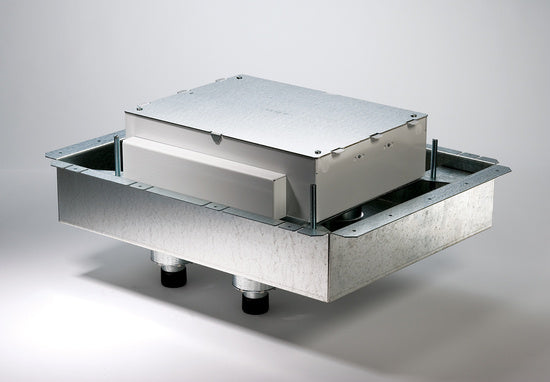

EFB6S-FC Evolution™ Six Gang Fire-Classified Floor Box
Six gang fire-classified floor box designed for 2-hour fire rated above-grade concrete floors
The EFB6S-FC is a six gang fire-classified floor box from the Evolution™ Series, engineered for installation in above-grade concrete floors while maintaining a 2-hour fire rating. This unit is specifically designed for new construction applications where the fire classification of the floor must be preserved. To maintain the floor's integrity, the assembly should be installed in accordance with the manufacturer's instructions, typically spaced at 2' (0.61m) OC with no more than one unit per 4 square feet (0.37m2) of floor area in each span. This box is compatible with D900 Series floor-ceiling designs featuring nominal 2-inch or 3-inch deep fluted steel units with a 5-inch wide valley. For installations on polished concrete or terrazzo, the EFB610-CTR must be used and is sold separately. Users should consult a structural engineer before cutting into decking and add additional supports as instructed.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 24.79 in (63 cm) |
| Height | 12.68 in (32.2 cm) |
| Width | 19.29 in (49 cm) |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
| Color | White |
Resources
Questions about this part
What is required for installation on polished concrete or terrazzo floors?
For use on bare polished concrete or terrazzo, you must use the EFB610-CTR, which is sold separately.
What components are required to complete the installation?
The unit is supplied with a protective cover, a tunnel system for connecting the two compartment modules, a fire-classified pan, two removable modules, four 1 1/4 inch intumescent conduit feeds, and two cable management guides.
Does this floor box include the device plates and receptacles?
No, receptacles, communication jacks, A/V devices, and device plates are not included and must be purchased separately.
What is the required spacing for maintaining the 2-hour fire rating?
To maintain the fire rating, units should be spaced at 2' (0.61m) OC with no more than one unit per 4 square feet (0.37m2) of floor area in each span.
Which submittal documents are available for this fire-classified box?
Installers can access UL Fire Classified Floor Box documentation, Evolution Series Fire Classified Floor Box PDFs, and BIM models for submittals.
