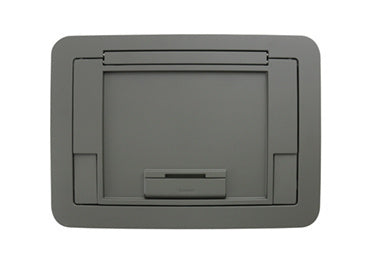

EFB45CTGYTR Evolution™ EFB45 Floor Box Flush Style Cover with Floor Insert in Gray
Flush-style floor box cover with auto-closing egress doors for use with EFB45S series floor boxes in gray
The Wiremold EFB45CTGYTR is a low-profile, flush-style cover designed specifically for attachment to EFB45S series floor boxes. Constructed from durable die-cast aluminum, this gray cover features a hinge that allows the unit to rotate 180° for easy access. It is equipped with two slide egress doors that lock in the open position during use, but automatically close around cabling when the cover is shut to mitigate trip hazards and protect wires. While this assembly is intended for finished flooring like wood or carpet tile, a separate EFB45-CTR ring must be used if you require a flush installation in polished concrete or terrazzo. This specific SKU features a gray powder coat finish, distinguishing it from the black, bronze, satin brass, satin nickel, or brushed aluminum options available in the Evolution Series.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Height | 1.19 in (3 cm) |
| Width | 9.94 in (25.2 cm) |
| Color | Gray |
| Cover Style | Flush |
| Receptacle Type | Tamper-Resistant |
| TAA Compliant | No |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
Will this cover work for an installation in polished concrete?
To achieve a flush installation in polished concrete or terrazzo, you must use the EFB45-CTR ring, which is sold separately.
What is the difference between this cover and the black version?
This EFB45CTGYTR SKU features a gray powder coat finish; the black version is a separate model within the Evolution Series.
How do the egress doors function when cables are present?
The two slide egress doors lock in place when open, but they automatically close around the cables when the cover is closed to reduce trip hazards.
Is this cover suitable for carpet tile or wood floors?
Yes, these cover assemblies are designed specifically to work with finished flooring surfaces such as wood or carpet tile.
Does this cover include the receptacle?
This is the cover and floor insert assembly; it is designed to be used with EFB45S series floor boxes.
