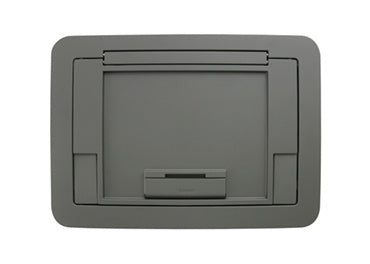

EFB45CTGY Evolution™ EFB45 Floor Box Flush Style Cover with Floor Insert in Gray
Gray flush-style floor box cover with die-cast aluminum construction and auto-closing egress doors
The Wiremold EFB45CTGY is a low-profile, flush-style cover designed specifically to attach to EFB45S style floor boxes. Constructed from die-cast aluminum, this cover features a durable hinge that allows the unit to rotate open up to 180°. It is equipped with two slide egress doors that lock in the open position for easy access and automatically close around cables when shut to reduce trip hazards. This cover assembly is designed for use with finished floors, including carpet tile and wood. If you are installing into a polished concrete or terrazzo floor, the EFB45-CTR concrete/terrazzo ring must be used (sold separately) to ensure a flush installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Height | 1.19 in (3 cm) |
| Width | 9.94 in (25.2 cm) |
| Color | Gray |
| Cover Style | Flush |
| Receptacle Type | Standard |
| TAA Compliant | No |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
Will this cover work for a concrete or terrazzo floor installation?
To achieve a flush installation in polished concrete or terrazzo, you must use the EFB45-CTR concrete/terrazzo ring, which is sold separately.
What floor types is this cover designed to accommodate?
This assembly is designed to work with finished flooring surfaces such as wood or carpet tile.
How do the egress doors operate on the EFB45CTGY?
The cover includes two slide egress doors that lock in the open position and automatically close around wires when the cover is closed.
Is this a standalone product or does it require a specific base?
This cover is designed to attach to the EFB45S style floor boxes within the Evolution Series.
What are the dimensions of this floor box cover?
The EFB45CTGY measures 9.94 in (25.2 cm) in width and has a height of 1.19 in (3 cm).
