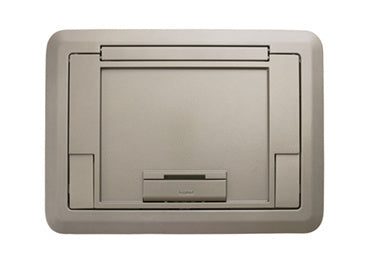

EFB45CTCNKTR Evolution™ EF45 Floor Box Surface Style Cover with Floor Insert in Nickel
Surface style floor box cover with a recessed area for finished flooring and auto-closing cable egress doors in a nickel finish
The Wiremold EFB45CTCNKTR is a low profile surface style cover designed to attach to EFB45S style floor boxes. Constructed from die cast aluminum, this Nickel finish cover features a durable hinge that allows the lid to rotate open up to 180 degrees. It includes a deep recessed area specifically engineered to accept various finished floor coverings, such as wood, tile, carpet, terrazzo, or polished concrete. For user safety and cable protection, the assembly utilizes two slide egress doors that lock in the open position during servicing and automatically close around cabling when the cover is shut. The flange is designed with a bevelled edge to meet ADA guidelines and minimize potential tripping hazards in high-traffic areas.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Color | Nickel |
| Cover Style | Surface |
| Receptacle Type | Tamper-Resistant |
| UPC | 786564086703 |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
Will this cover work with my existing EFB45S floor box?
Yes, this cover is specifically designed to attach to the EFB45S style floor box series.
What types of flooring can be used with the EFB45CTCNKTR?
The deep recessed area is designed to accommodate finished flooring such as carpet, tile, wood, polished concrete, or terrazzo.
Does the cover include cable protection?
Yes, the unit features two slide egress doors that automatically close around cables when the cover is closed to prevent tripping and protect wiring.
What is the finish of this specific model?
This SKU is finished in Nickel and is part of a series that also offers black, gray, brass, aluminum, and bronze powder coat options.
Which documents are available for submittals?
Installers can access the Evolution Series Floor Box Div 16 or Div 26 documents, as well as BIM models, through the resources tab.
