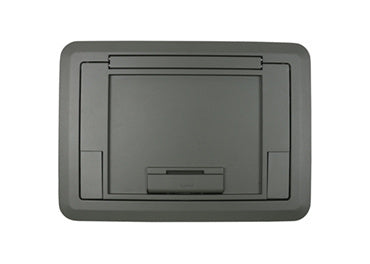

EFB45CTCGYTR Evolution™ EF45 Floor Box Surface Style Cover with Floor Insert in Gray
Surface style floor box cover in gray, featuring auto-close egress doors and a 1.19 in (3 cm) height for finished floors
The Wiremold EFB45CTCGYTR is a surface style cover designed specifically for use with EFB45S style floor boxes. This gray, die-cast aluminum cover is engineered for installations in finished flooring, such as wood or carpet tile. It features a durable hinge that allows the cover to rotate open up to 180°. To manage cabling safely, the unit includes two slide egress doors that lock into the open position during use and automatically close around wires when the cover is shut to minimize trip hazards. When installing in polished concrete or terrazzo, the EFB45-CTR ring is required to achieve a flush finish; please note that the EFB45-CTR ring is sold separately. This Evolution Series component is cULus and RoHS compliant.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Height | 1.19 in (3 cm) |
| Width | 9.94 in (25.2 cm) |
| Color | Gray |
| Cover Style | Surface |
| Receptacle Type | Tamper-Resistant |
| TAA Compliant | No |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
What type of floor is this cover designed for?
This cover is intended for use with finished floors like wood or carpet tile. For polished concrete or terrazzo, you must use the EFB45-CTR ring to ensure the cover sits flush.
What is required to achieve a flush mount in concrete?
To make this assembly flush with terrazzo or polished concrete, you must install the EFB45-CTR ring, which is sold separately from this cover.
How do the egress doors work on the EFB45CTCGYTR?
The cover features two slide egress doors that lock in the open position while you are accessing the box, and they automatically close around cables when the cover is closed to prevent trip hazards.
Can I use this with an EFB45S floor box?
Yes, this cover is specifically designed to attach to the EFB45S style floor boxes within the Evolution Series.
What are the dimensions of this cover?
The EFB45CTCGYTR has a height of 1.19 in (3 cm) and a width of 9.94 in (25.2 cm).
