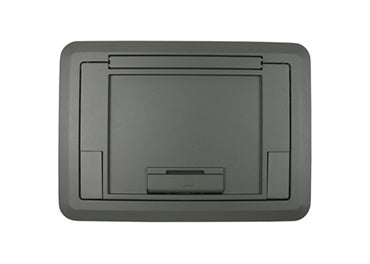

EFB45CTCGY Evolution™ EF45 Floor Box Surface Style Cover with Floor Insert in Gray
Surface style floor box cover for EFB45S series, featuring gray finish and auto-close egress doors
The Wiremold EFB45CTCGY is a surface style cover designed specifically for attachment to EFB45S style floor boxes. This low-profile assembly is constructed from durable die-cast aluminum and features a hinge that allows the cover to rotate open up to 180°. It includes two slide egress doors that lock in the open position for easier access and automatically close around cables when the cover is shut, protecting the wires and reducing trip hazards. This specific SKU features a gray finish. The cover assembly is intended for use with finished flooring like wood or carpet tile. If the installation requires a flush mount on polished concrete or terrazzo, the EFB45-CTR ring must be used, which is sold separately. This component is cULus and RoHS compliant.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Height | 1.19 in (3 cm) |
| Width | 9.94 in (25.2 cm) |
| Color | Gray |
| Cover Style | Surface |
| Receptacle Type | Standard |
| TAA Compliant | No |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
Which floor box is this cover compatible with?
The EFB45CTCGY is designed to attach to the EFB45S style floor boxes.
How do I install this on polished concrete or terrazzo?
To achieve a flush mount on polished concrete or terrazzo, you must use the EFB45-CTR ring, which is sold separately.
What is the purpose of the egress doors on this cover?
The two slide egress doors lock in the open position for servicing and automatically close around cables when closed to protect wiring and prevent trip hazards.
Is this cover suitable for raised floor applications?
Yes, this is a surface style cover designed for use with EFB45S series raised floor boxes.
What type of flooring is this cover intended for?
The assembly is designed to work with finished floor surfaces such as wood or carpet tile.
