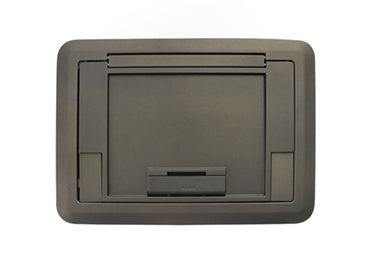

EFB45CTCBZTR Evolution™ EF45 Floor Box Surface Style Cover with Floor Insert in Bronze
Surface style floor box cover with automatic cable egress doors and floor insert in a bronze finish
The EFB45CTCBZTR is a low profile surface style cover designed for use with EFB45S style floor boxes. This die-cast aluminum cover features a durable hinge that allows for 180° rotation. It is equipped with two slide egress doors that lock in the open position for easy access and automatically close around cables when the cover is shut to minimize trip hazards and protect wiring. This bronze finish component is intended for installation in finished flooring like wood or carpet tile. For applications involving polished concrete or terrazzo, the EFB45-CTR ring must be used to achieve a flush installation, as this ring is sold separately.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Height | 1.19 in (3 cm) |
| Width | 9.94 in (25.2 cm) |
| Color | Bronze |
| Cover Style | Surface |
| Receptacle Type | Tamper-Resistant |
| TAA Compliant | No |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
What floor types is the EFB45CTCBZTR compatible with?
This cover is designed for use with finished floors such as wood or carpet tile.
How do I install this cover flush in concrete or terrazzo?
To achieve a flush installation in polished concrete or terrazzo, you must use the EFB45-CTR ring, which is sold separately.
What is the difference between the egress doors on this cover?
The two slide egress doors lock in the open position to facilitate access but automatically close around cables when the cover is closed to reduce trip hazards.
What other components are required for the EFB45CTCBZTR?
This cover is designed to attach to EFB45S style floor boxes. If installing in concrete, the EFB45-CTR ring is also required.
Which certifications does this Wiremold cover carry?
The EFB45CTCBZTR is cULus and RoHS listed.
