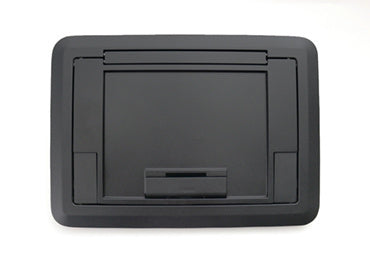

EFB45CTCBKTR Evolution™ EF45 Floor Box Surface Style Cover with Floor Insert in Black
Black surface style cover for EFB45S floor boxes, featuring auto-closing egress doors for cable protection
The EFB45CTCBKTR is a low profile surface style cover designed specifically for use with EFB45S style floor boxes. Constructed from die-cast aluminum, this black cover is intended for installation in finished flooring environments such as wood or carpet tile. It features a durable hinge that allows the cover to rotate 180°, alongside two slide egress doors. These doors lock in the open position for easy access and automatically close around cabling when the cover is shut to mitigate trip hazards and protect wires. For installations on polished concrete or terrazzo floors, the EFB45-CTR ring must be used to ensure the assembly sits flush; this ring is sold separately.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Height | 1.19 in (3 cm) |
| Width | 9.94 in (25.2 cm) |
| Color | Black |
| Cover Style | Surface |
| Receptacle Type | Tamper-Resistant |
| TAA Compliant | No |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
What is the purpose of the egress doors on the EFB45CTCBKTR?
The two slide egress doors lock in the open position for access and automatically close around cables when the cover is shut to reduce trip hazards.
Does this cover work for concrete or terrazzo floors?
To achieve a flush installation on polished concrete or terrazzo, you must use the EFB45-CTR ring, which is sold separately.
Which floor types is this surface style cover compatible with?
This assembly is designed for use with finished floors, specifically carpet tile and wood.
Is this a complete floor box assembly?
No, this is the cover assembly designed to attach to EFB45S style floor boxes.
What are the dimensions of the EFB45CTCBKTR cover?
The cover measures 9.94 in (25.2 cm) in width and has a height of 1.19 in (3 cm).
