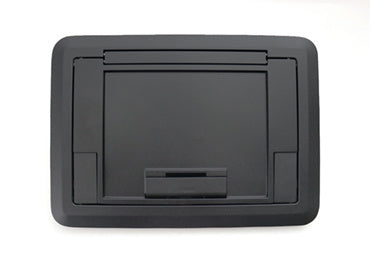

EFB45CTCBK Evolution™ EF45 Floor Box Surface Style Cover with Floor Insert in Black
Surface style black cover with floor insert for EFB45S series floor boxes, featuring auto-close egress doors for cable protection
The Wiremold EFB45CTCBK is a low-profile, surface-style cover designed specifically for use with EFB45S style floor boxes. Constructed from durable die-cast aluminum, this black cover is engineered for installation in finished flooring environments, such as wood or carpet tile. It features a robust hinge that allows the cover to rotate 180° for access. To ensure safety and cable protection, the unit includes two slide egress doors that lock in the open position and automatically close around cabling once the cover is shut, significantly reducing trip hazards. For installations involving polished concrete or terrazzo, an EFB45-CTR ring must be used to achieve a flush finish (sold separately). This black finish is one of several available options in the Evolution Series, which also includes gray, bronze, satin brass, satin nickel, and brushed aluminum.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 13.75 in (34.9 cm) |
| Height | 1.19 in (3 cm) |
| Width | 9.94 in (25.2 cm) |
| Color | Black |
| Cover Style | Surface |
| Receptacle Type | Standard |
| TAA Compliant | No |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
Will this cover work with my EFB45S floor box?
Yes, the EFB45CTCBK is specifically designed to attach to the EFB45S style floor boxes.
What do I need to buy to install this in polished concrete?
To achieve a flush installation in polished concrete or terrazzo, you must also use the EFB45-CTR ring, which is sold separately.
How does the egress door mechanism work?
The cover features two slide egress doors that lock in the open position when being serviced, then automatically close around cables when the cover is shut.
Is this cover suitable for wood flooring?
Yes, this cover assembly is designed to work with finished floors such as carpet tile and wood.
What is the warranty for this cover?
It includes a 1-year warranty from the date of installation or a 2-year warranty from the date of sale.
