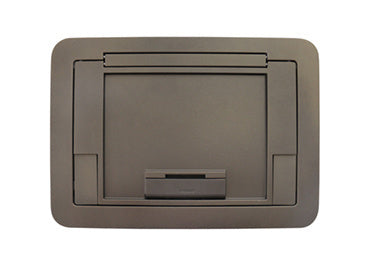

EFB45CTBZTR Evolution™ EFB45 Floor Box Flush Style Cover with Floor Insert in Bronze
Bronze flush-style floor box cover for EFB45S floor boxes, featuring auto-close egress doors for cable protection
The EFB45CTBZTR is a low-profile, flush-style cover designed specifically for use with EFB45S style floor boxes. Constructed from die-cast aluminum, this bronze-finished cover features a durable hinge that allows it to rotate open up to 180°. To manage cabling, the assembly includes two slide egress doors that lock in the open position during use and automatically close around wires when the cover is shut to reduce trip hazards. While this assembly works with finished floorings like wood or carpet tile, installers requiring a flush installation in polished concrete or terrazzo must use the EFB45-CTR ring, which is sold separately. This component is cULus and RoHS compliant, ensuring safety and environmental standards for professional AV and electrical installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Height | 1.19 in (3 cm) |
| Width | 9.94 in (25.2 cm) |
| Color | Bronze |
| Cover Style | Flush |
| Receptacle Type | Tamper-Resistant |
| TAA Compliant | No |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
Will this cover work with polished concrete or terrazzo floors?
To achieve a flush installation in polished concrete or terrazzo, you must use the EFB45-CTR ring, which is sold separately.
What is the purpose of the egress doors on the EFB45CTBZTR?
The two slide egress doors lock in place when open and automatically close around cables when shut to protect wiring and minimize trip hazards.
What other finishes are available for the Evolution series floor box covers?
This series is available in black, gray, satin brass, satin nickel, and brushed aluminum in addition to this bronze finish.
Does this cover include the receptacle?
This SKU is a cover with a floor insert; the receptacle itself is part of the floor box assembly, not this specific cover component.
Which document should I use for submittals?
Installers can refer to the Evolution Series Floor Box Div 16 or Div 26 documents for technical submittal information.
