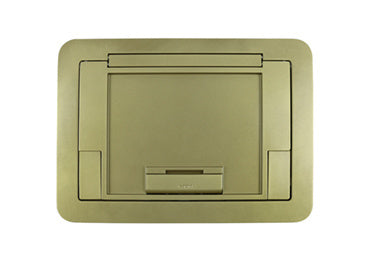

EFB45CTBSTR Evolution™ EFB45 Floor Box Flush Style Cover with Floor Insert in Brass
Flush-style floor box cover with integrated floor insert and brass finish, designed for EFB45S style boxes
The EFB45CTBSTR is a die-cast aluminum flush-style cover designed to attach to EFB45S style floor boxes. This cover features a 1/4" deep recessed area that accepts finished floor coverings like wood, tile, or carpet, allowing the assembly to sit flush with the floor surface. It includes a durable hinge that provides a 180-degree rotation and two slide egress doors. These doors are designed to lock in the open position for easy access and automatically close around cables when the cover is shut to mitigate trip hazards. For installations involving polished concrete or terrazzo, the EFB45-CTR ring must be used and is sold separately.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Color | Brass |
| Cover Style | Flush |
| Receptacle Type | Tamper-Resistant |
| UPC | 786564087052 |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
Will this cover sit flush with concrete or terrazzo floors?
To achieve a flush installation on polished concrete or terrazzo, you must use the EFB45-CTR ring, which is sold separately.
What floor types is this cover compatible with?
The cover is designed to sit flush with various finished surfaces, including wood, tile, and carpet.
What is the purpose of the egress doors on the EFB45CTBSTR?
The two slide egress doors lock in place when open and automatically close around cables when the cover is closed to reduce trip hazards.
Which floor box style is this cover designed for?
This cover is designed specifically to attach to the EFB45S style floor boxes.
Is this product UL listed?
This product carries cULus and RoHS certifications.
