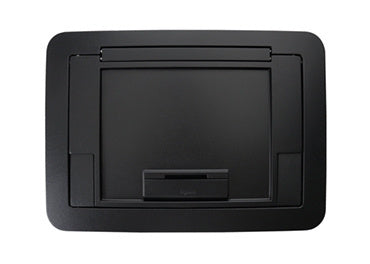

EFB45CTBK Evolution™ EFB45 Floor Box Flush Style Cover with Floor Insert in Black
Black flush-style floor box cover with auto-closing egress doors for carpet tile or wood finishes
The EFB45CTBK is a low-profile, flush-style cover designed specifically for use with EFB45S style floor boxes. This die-cast aluminum cover features a durable hinge that allows it to rotate 180° for easy access. It is equipped with two slide egress doors that lock in the open position and automatically close around cables when the cover is shut, helping to reduce trip hazards and protect wiring. This unit is intended for use with finished flooring such as wood or carpet tile. If you are installing into polished concrete or terrazzo, you must use the EFB45-CTR ring, which is sold separately. This black finish is one of several available powder coat and durable finish options in the Evolution Series.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Height | 1.19 in (3 cm) |
| Width | 9.94 in (25.2 cm) |
| Color | Black |
| Cover Style | Flush |
| Receptacle Type | Standard |
| TAA Compliant | No |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
What is the difference between this and the EFB45-CTR?
The EFB45-CTR is a separate ring required to make the cover assembly flush with polished concrete or terrazzo floors.
Will this cover work for a concrete floor installation?
For a flush installation in polished concrete or terrazzo, you must use the EFB45-CTR ring, which is sold separately from this cover.
What types of flooring is this cover designed for?
The assembly is designed to work with finished floors such as carpet tile and wood.
What is the purpose of the egress doors on the EFB45CTBK?
The two slide egress doors lock in an open position during use and automatically close around wires when closed to reduce trip hazards.
Which floor box does this cover attach to?
This cover is designed to attach to the EFB45S style floor boxes.
