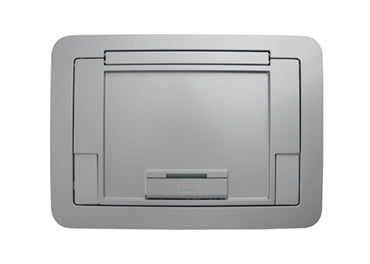

EFB45CTALTR Evolution™ EFB45 Floor Box Flush Style Cover with Floor Insert in Aluminum
Aluminum flush-style floor box cover with 1/4" recessed area for finished flooring and auto-closing egress doors
The Wiremold EFB45CTALTR is a low-profile, die cast aluminum cover designed for use with EFB45S style floor boxes. This flush-style cover features a 1/4" deep recessed area that accepts the finished floor covering, allowing the assembly to sit level with surfaces like carpet, tile, or wood. It is equipped with a durable hinge for 180-degree rotation and includes two slide egress doors. These doors are designed to lock in the open position for easy access and automatically close around cables when shut to minimize trip hazards and protect wiring. For installations on polished concrete or terrazzo, the EFB45-CTR ring must be used as a separate purchase to achieve a flush finish.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Color | Aluminum |
| Cover Style | Flush |
| Receptacle Type | Tamper-Resistant |
| UPC | 786564086840 |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
What floor types can I use with the EFB45CTALTR?
The cover is designed to sit flush with finished floorings such as carpet, tile, and wood.
How do I install this on polished concrete or terrazzo?
To achieve a flush installation on polished concrete or terrazzo, you must use the EFB45-CTR ring, which is sold separately.
What is the difference between the egress doors and the cover?
The cover features two slide egress doors that lock open during use and automatically close around cables when the cover is closed.
Does this cover include the EFB45S floor box?
No, this is the cover assembly specifically designed to attach to the EFB45S style floor box.
Which documentation is needed for a submittal?
Installers can refer to the Evolution Series Floor Box Div 26 or Div 16 documents for submittal information.
