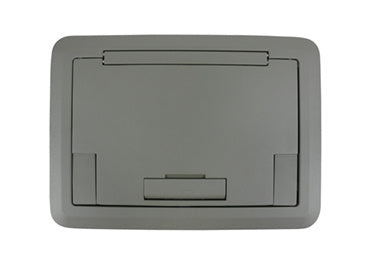

EFB45BTCGY Evolution™ EFB45 Floor Box Surface Style Cover with Solid Lid in Gray
Surface style floor box cover for Evolution EFB45S series boxes, featuring automatic-closing egress doors in a gray finish
The EFB45BTCGY is a surface-style cover designed for use with EFB45S style floor boxes within the Evolution Series. This die-cast aluminum cover is engineered for installation in finished flooring environments, such as wood or carpet tile. It features a durable hinge that allows the lid to rotate open up to 180°. To manage cabling safely, the assembly includes two slide egress doors that lock in the open position and automatically close around wires when the lid is shut, minimizing trip hazards. For installations on polished concrete or terrazzo, the EFB45-CTR ring must be used to ensure the assembly sits flush (ring sold separately). This gray finish is one of several options available in the Evolution series.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 13.75 in (34.9 cm) |
| Height | 1.19 in (3 cm) |
| Width | 9.94 in (25.2 cm) |
| Color | Gray |
| Cover Style | Surface |
| Receptacle Type | Standard |
| TAA Compliant | No |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
Will this cover work with my EFB45S floor box?
Yes, the EFB45BTCGY is specifically designed to attach to the EFB45S style floor boxes in the Evolution Series.
How do I install this on polished concrete or terrazzo?
To achieve a flush installation on polished concrete or terrazzo, you must use the EFB45-CTR ring, which is sold separately.
What type of flooring is this cover compatible with?
The assembly is designed to function with finished floors like wood or carpet tile.
How do the egress doors work to prevent trip hazards?
The two slide egress doors lock in place when open and automatically close around the cabling once the cover is shut.
What is the rotation range of the lid hinge?
The durable hinge allows the cover to rotate open up to 180° for easier access.
