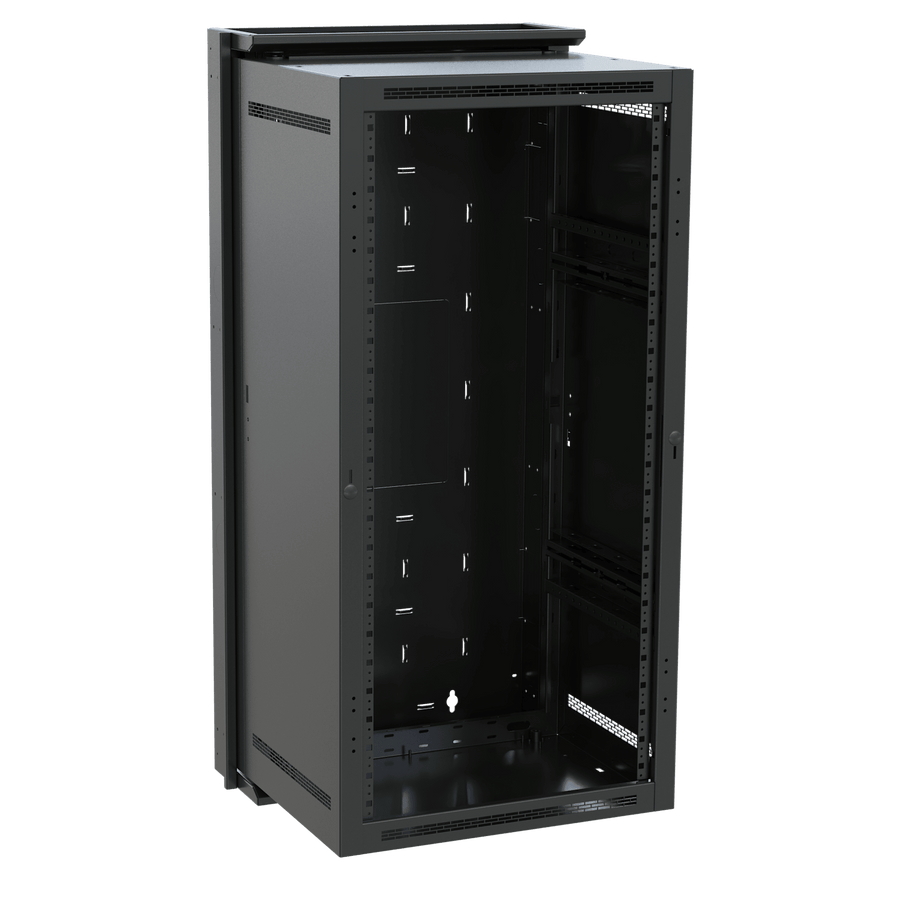

DWR Series Pivoting Wall Rack - DWR-21-17
21 RU pivoting wall rack with 17" depth, 250 lbs UL load capacity, and seismic rating
The Middle Atlantic DWR-21-17 is a 21 RU pivoting wall rack designed to simplify high-density AV installations. This rack features a 17" (43.2 cm) depth and a robust steel construction finished in a black wrinkle powder coat. The center section is reversible and can be secured with either a key or a padlock, offering flexible mounting for diverse environments. It utilizes a Tool-Free Quick-Mount™ system, allowing a single installer to attach the center section to the backpan quickly on-site. This model is Forward and Lever Lock™ compatible, supporting a suite of tool-free accessories to increase installation speed. For specialized environments, the DWR-21-17 is Seismic Rated with a seismic load capacity of 155 lbs (70.3 kg) when used with the DWRSR-ZL latch. It is TAA compliant and UL listed. The center section includes a rear channel designed to accommodate slim power components, such as the 10-outlet Select Vertical PDU with RackLink™.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 17 in (43.2 cm) |
| Height | 43.75 in (111.1 cm) |
| Product Weight | 66.5 lbs (30.2 kg) |
| Rack Units | 21 RU |
| Shipping Weight | 103 lbs (46.7 kg) |
| UL Load Capacity | 250 lbs (113.4 kg) |
| Usable Depth | 15 in (38.1 cm) |
| Usable Height | 36.75 in (93.3 cm) |
All other specifications 15
| Width | 23.4 in (59.4 cm) |
| Available Internationally | Yes |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Front Door | No |
| Material | Steel |
| Rack Rail Type | Forward Rackrail |
| Seismic Rated | Yes |
| TAA Compliant | Yes |
| UPC | 656747005411 |
| Certifications | CSA StandardTAAUL Listed |
| Patent Number | 7278183 |
| Seismic Load Capacity | 155 lbs (70.3 kg) |
Resources
Questions about this part
Will the DWR-21-17 fit my equipment depth?
The DWR-21-17 has a total depth of 17" (43.2 cm) with a usable depth of 15" (38.1 cm) for your mounted hardware.
What is required to make this rack seismic rated?
To achieve its seismic rating and 155 lbs (70.3 kg) seismic load capacity, you must use the DWRSR-ZL latch.
Can I secure the center section of the DWR-21-17?
Yes, the center section is reversible and can be secured using either a key lock or a padlock.
What is the weight capacity for this wall rack?
This rack is UL Listed with a 250 lbs (113.4 kg) load capacity.
Which documents are available for submittals?
Submittals can be supported using the DWR Series 3 Part Specification, the DWR Series Wall Mount Rack A&E Specification Sheet, or the CAD Technical Specification Drawings.
