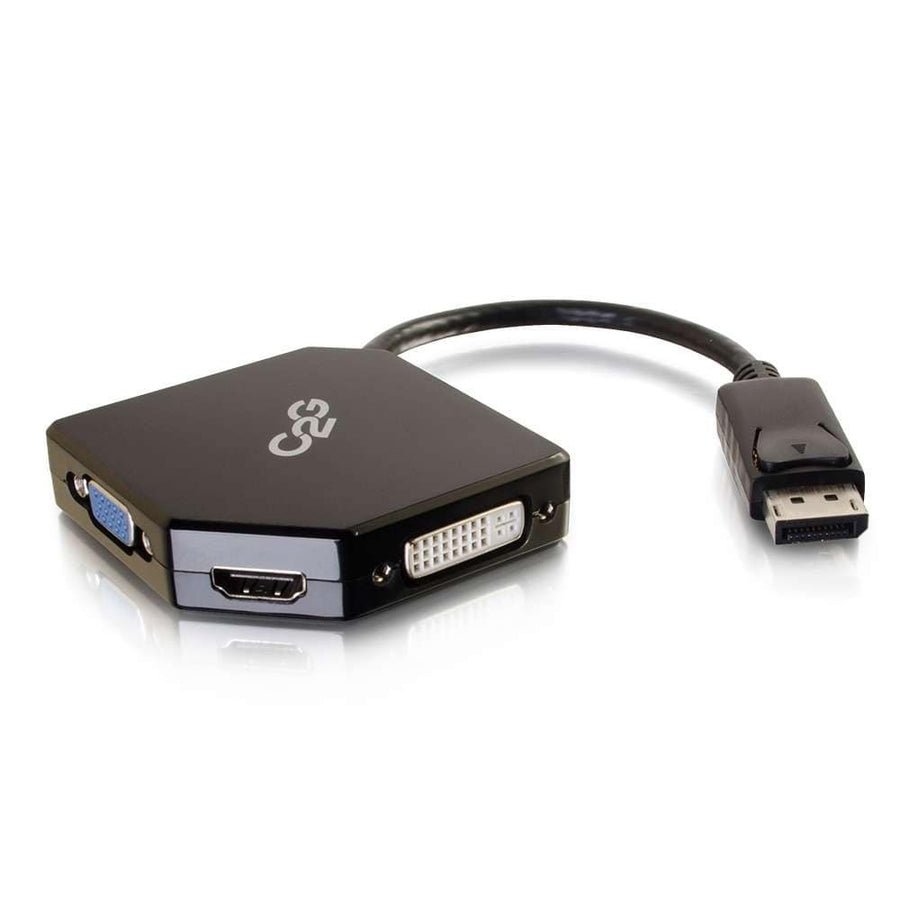

DisplayPort to HDMI, VGA, or DVI Adapter Converter
DisplayPort to HDMI, VGA, or DVI converter supporting up to 4K @ 30Hz via HDMI
The C2G CG54340 is a compact, all-in-one converter designed to connect DisplayPort-equipped laptops, tablets, or other source devices to various display types including projectors, monitors, or HDTVs. This adapter features one DisplayPort male connector and three female ports: HDMI, VGA, and DVI. It is an ideal solution for BYOD (Bring Your Own Device) environments in corporate meeting rooms, schools, and conference spaces where multiple display inputs may be present. This dongle-style adapter provides integrated strain relief to protect the source device's port from damage caused by cable movement. This is a plug-and-play device that requires no drivers for installation and draws its power directly from the DisplayPort bus, eliminating the need for external power adapters. Note that this converter can only output signal to one video port at a time and cannot output multiple signals simultaneously.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Weight | 0.15 lbs (0.1 kg) |
| Cable Type | HDMI |
| Color | Black |
| Connector 1 | (1) DisplayPort Male |
| Connector 2 | (1) DVI Female(1) HDMI Female(1) VGA Female |
| TAA Compliant | No |
| UPC | 757120543404 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Warranty | 5 years |
| Cable Diameter | 5.5 mm |
Resources
Questions about this part
Will the CG54340 work with my laptop and a 4K monitor?
Yes, if the monitor has an HDMI input, this adapter supports 3840 x 2160 at 30Hz via the HDMI port.
Can I use this adapter to run two monitors at once?
No, this converter is designed to output signal to only one video port at a time; it cannot output multiple signals simultaneously.
Does the CG54340 require an external power source?
No, this is a bus-powered adapter that draws all necessary power directly from the DisplayPort connection.
What resolutions can I get using the VGA or DVI ports?
Both the VGA and DVI female ports support resolutions up to 1920 x 1080 at 60Hz.
What do I need to do to install this adapter?
This is a plug-and-play device that does not require any driver installation to function.
