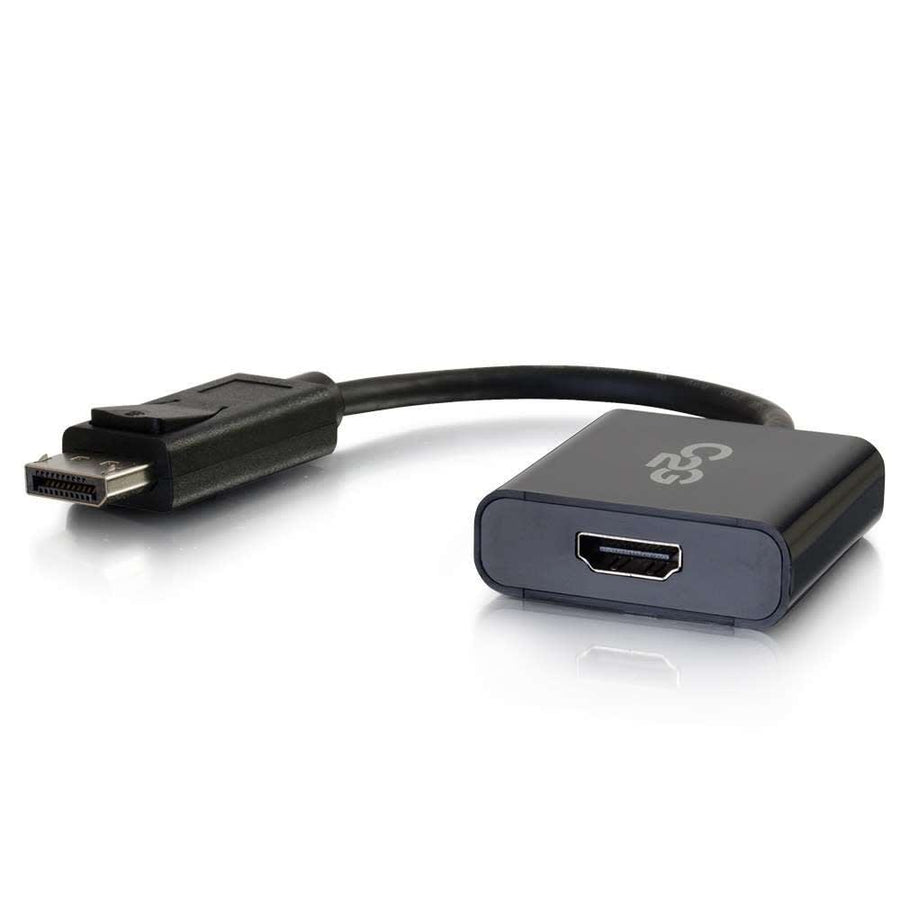

DisplayPort™ to HDMI® Active Adapter Converter 4K 30Hz - Black
Active DisplayPort male to HDMI female converter supporting 4K 30Hz resolution, ideal for BYOD classroom and corporate environments
The C2G CG54306 is an active DisplayPort to HDMI adapter designed to bridge the connection between a laptop or tablet's DisplayPort video output and the HDMI input of a monitor, projector, or HDTV. This converter is engineered for active conversion, meaning it functions with both DisplayPort single-mode and dual-mode outputs, even when the source device does not support DP++. This capability makes it a reliable choice for complex AV setups where an installer might need to connect multiple active adapters to a single graphics card. Its compact, dongle-style design provides essential strain relief by using a 0.67 ft (203 mm) cable between the DisplayPort male connector and the HDMI female port, protecting the device's host port from physical damage during movement. This plug-and-play solution draws power directly from the DisplayPort bus, eliminating the need for external power cables in classrooms, meeting rooms, or presentation spaces.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Weight | 0.09 lbs (0 kg) |
| Cable Type | DisplayPortHDMI |
| Color | Black |
| Connector 1 | (1) DisplayPort Male |
| Connector 2 | (1) HDMI Female |
| TAA Compliant | No |
| UPC | 757120543060 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Warranty | 5 years |
| Cable Diameter | 5.2 mm |
| Cable Length | 0.67 ft |
Resources
You'll need these with it
Questions about this part
Will the CG54306 work with a laptop that doesn't support DP++?
Yes. Because this is an active adapter, it provides conversion even if your source device lacks DP++ support.
What do I need to connect my computer to an HDMI monitor using this adapter?
You will need an HDMI cable to connect the female HDMI port on the CG54306 to your monitor or projector.
Does this adapter require an external power supply?
No, this is a bus-powered device that draws all necessary power directly from the DisplayPort connection.
Can I use this to connect multiple displays to one graphics card?
Yes. Active conversion is specifically designed for applications where multiple adapters are required for a single graphics card.
What is the maximum resolution supported by this converter?
The CG54306 supports 4K resolution at a 30Hz refresh rate.
