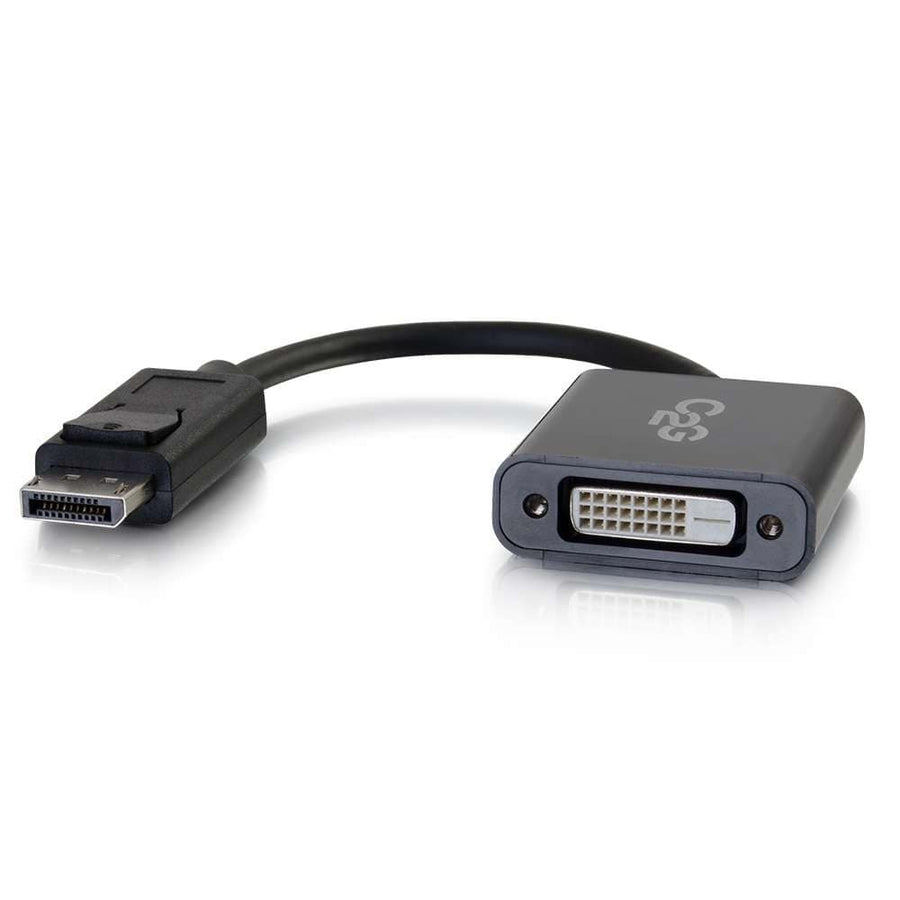

DisplayPort to DVI-D Active Adapter Converter - Black
Active DisplayPort male to DVI-D dual link female adapter supporting up to 1920x1200 resolution
The C2G CG54317 is an active DisplayPort to DVI-D adapter designed to connect the video output of a laptop or tablet to the DVI-D input of a monitor, projector, or HDTV. This active conversion is essential when using multiple adapters with a single graphics card, as it ensures each adapter can interface with its corresponding display. It functions in both single-mode and dual-mode DisplayPort outputs, providing reliable conversion even if the source device does not support DP++. This dongle-style design includes a 0.67 ft (0.2 m) integrated cable that provides strain relief for the video port, helping to prevent damage from cable movement. Because it is an active device, it is powered through the DisplayPort bus power, meaning no external power adapters are required for operation. This unit is a plug-and-play solution that requires no drivers for installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 2.01 in (51 mm) |
| Cable Diameter | 0.2 in (5.2 mm) |
| Cable Length | 0.67 ft (0.2 m) |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Shipping Weight | 0.1 lbs (0.1 kg) |
| Storage Temperature Max | 158 Fahrenheit (70 Celsius) |
| Storage Temperature Min | -13 Fahrenheit (-25 Celsius) |
| Voltage | 30 V |
All other specifications 18
| Wire Gauge | 32 |
| Active/Passive | Active |
| Cable Type | DisplayPortDVI |
| Color | Black |
| Connector 1 | (1) DisplayPort Male |
| Connector 2 | (1) DVI-D Dual Link Female |
| Jacket Rating | Standard / Non-Rated |
| Number of Ports | 1 |
| Product Type | Active DeviceAdapterConverter |
| TAA Compliant | No |
| UPC | 757120543176 |
| Video Input Support | DisplayPort |
| Video Output Support | DVI-D |
| Video Resolution | 1080pWUXGA (1920x1200) |
| Certifications | CEFCCNDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 18 GBPS |
| Jacket Material | PVC |
| Warranty | 5 years |
Resources
Questions about this part
Will this adapter work with my laptop's DisplayPort output?
Yes, the CG54317 works with both single-mode and dual-mode DisplayPort outputs, including sources that do not support DP++.
Can I use this adapter to transmit audio to my monitor?
No, connecting to a DVI-D display will not allow audio to pass to the display via this adapter.
Does the CG54317 require any software installation?
No, this is a plug-and-play active adapter that does not require any drivers for installation.
What resolution can I expect with a DVI-D Dual Link connection?
This adapter supports video resolutions up to 1080p and WUXGA (1920x1200).
What is the maximum data transfer rate for this converter?
The device supports a data transfer rate of 18 GBPS.
