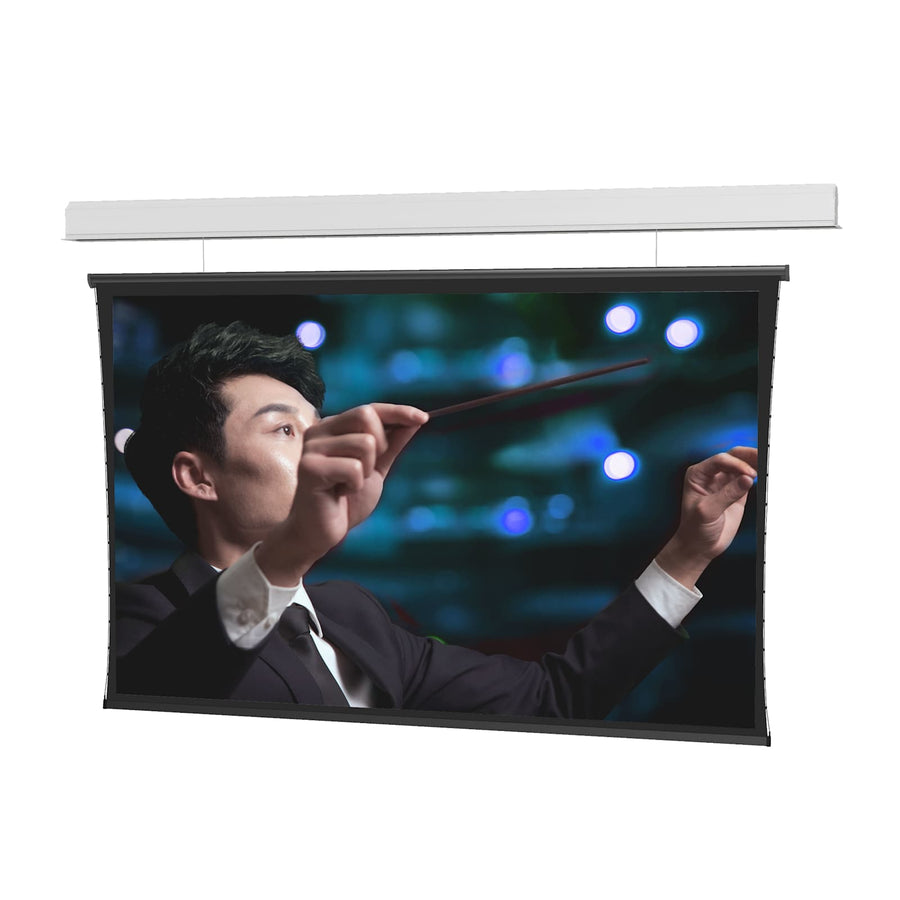

Da-Lite Wireline Advantage, 92" x 164" with HD Progressive ReView 0.9 - 29452G
92" x 164" rear projection screen with HD Progressive ReView 0.9 surface, designed for large venue ceiling or wall mounting
The Da-Lite 29452G is a Wireline Advantage Series rear projection screen measuring 92" x 164" (188" diagonal). Designed specifically for large venues, this electric screen utilizes thin steel cables for the drop instead of traditional black drop material, allowing it to reach an appropriate viewing height in rooms with high ceilings. This unit features the HD Progressive ReView 0.9 surface, optimized for high-resolution rear projection. The flangeless case is designed for versatile installation, supporting both ceiling recessed and wall applications. For ceiling recessed installs, the system includes sliding brackets and built-in ceiling trim to conceal the rough opening. This model is UL Plenum rated and is TAA compliant. It is equipped with a standard 120V (60Hz) radio frequency motor and includes a hand-held remote and dry contact interface. The Advantage tensioned system, featuring TruGuide™ technology, ensures a smooth, high-quality projection surface.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 188 in (477.5 cm) |
| Screen Height | 92 in (233.7 cm) |
| Shipping Dimensions | 204" x 18" x 23" (518.2 x 45.7 x 58.4 cm) |
| Shipping Weight | 693 lbs (314.3 kg) |
| Size | 92" x 164" or 188" diagonal |
| Application | Ceiling RecessedWall |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
All other specifications 10
| Product Selection | Flangeless Case |
| Projection Type | Rear Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive ReView 0.9 |
| TAA Compliant | Yes |
| UPC | 717068450431 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Radio Frequency Single Channel Wall Switch For Wireline (120V), Studio or Arena
28359$340.80
Da-Lite Radio Frequency Dry Contact Interface For Wireline (120V), Studio or Arena
71912$236.80
Da-Lite Radio Frequency Range Extender For Wireline (120V), Studio or Arena 05
35166$304.80
Da-Lite Radio Frequency RS-232 Control For Wireline (120V), Studio or Arena
29243$1,112.80
Da-Lite Wireline Advantage Wall Mount Brackets
29485$612.80
Da-Lite Replacement Radio Frequency Transmitter For Wireline (120V), Studio or Arena
99472$186.40
Questions about this part
Will this screen fit my projection setup?
This 29452G model is a rear projection screen featuring an HD Progressive ReView 0.9 surface, specifically designed for large venue applications.
What mounting options are available for the 29452G?
The Wireline Advantage can be installed via a ceiling recessed application or as a wall mount. For ceiling installs, it uses sliding brackets and integrated trim.
What control accessories are compatible with this 120V motor?
You can add a Da-Lite Radio Frequency Single Channel Wall Switch (28359), an RS-232 control interface (29243), or a Dry Contact Interface (71912).
What is the installation requirement for the housing?
The flangeless case is designed for easy installation; ceiling recessed models utilize sliding brackets to attach the housing to the structure above the drop ceiling.
Is this product TAA compliant?
Yes, the Da-Lite 29452G is TAA compliant and is manufactured in the US.
