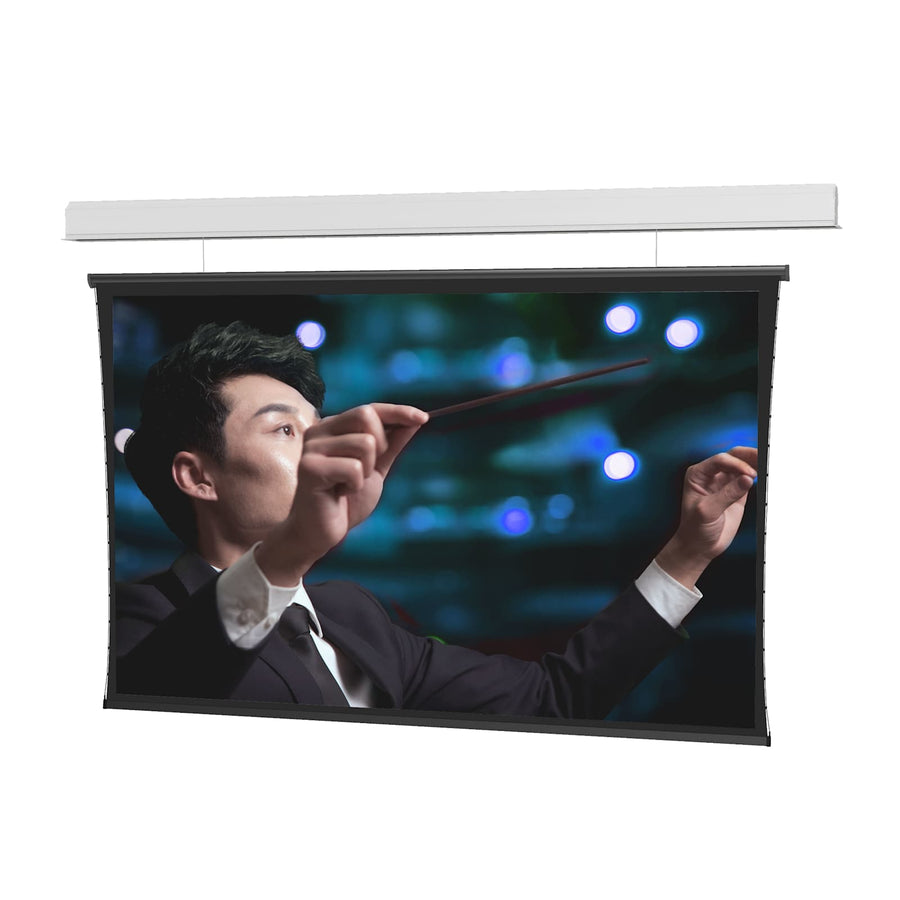

Da-Lite Wireline Advantage, 92" x 164" with HD Progressive 1.3 - 29216
Large venue electric projection screen with 92" x 164" dimensions, featuring an HD Progressive 1.3 surface and ceiling trim flange
The Da-Lite 29216 is a large venue electric projection screen designed for high-quality front projection in expansive spaces. Measuring 92" x 164" with an 188" diagonal, this Wireline Advantage series screen is equipped with an HD Progressive 1.3 surface. To ensure a smooth, flat viewing area, the screen utilizes the TruGuide™ Electric Screen Tensioning System. This model is specifically designed for ceiling recessed applications and includes a built-in ceiling trim flange, which eliminates the need for additional steps to conceal the rough opening. For installation, the unit features sliding brackets that allow for straightforward attachment to a structure above a drop ceiling. The system utilizes thin steel cables that can extend up to 24 feet, allowing the screen to be lowered to the appropriate viewing height even in rooms with very high ceilings. This SKU is TAA compliant and features a UL Plenum rated case.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 188 in (477.5 cm) |
| Screen Height | 92 in (233.7 cm) |
| Shipping Weight | 693 lbs (314.3 kg) |
| Size | 92" x 164" or 188" diagonal |
| Application | Ceiling RecessedWall |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Ceiling Trim Flange |
All other specifications 7
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.3 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Radio Frequency Single Channel Wall Switch For Wireline (120V), Studio or Arena
28359$340.80
Da-Lite Radio Frequency Dry Contact Interface For Wireline (120V), Studio or Arena
71912$236.80
Da-Lite Radio Frequency Range Extender For Wireline (120V), Studio or Arena 05
35166$304.80
Da-Lite Radio Frequency RS-232 Control For Wireline (120V), Studio or Arena
29243$1,112.80
Da-Lite Replacement Radio Frequency Transmitter For Wireline (120V), Studio or Arena
99472$186.40
Questions about this part
Will the Da-Lite 29216 fit my high-ceiling venue?
Yes, this model supports up to 24' of cable drop, allowing the screen to reach the necessary viewing height in rooms with very high ceilings.
What is required for a ceiling recessed installation?
This SKU features a built-in ceiling trim flange to conceal the rough opening and uses sliding brackets for easy attachment to the structure above a drop ceiling.
Can I control the 29216 screen via a wall switch or RS-232?
Yes, you can add a Da-Lite Radio Frequency Single Channel Wall Switch (SKU 28359) or a Radio Frequency RS-232 Control (SKU 29243) for integrated control.
What is the difference between this and the Myriad Conceal?
This Wireline Advantage model is being discontinued on December 31, 2026; the direct replacement is the Tensioned Myriad Conceal with SightLine (DL100262L), which uses a different cable drop system.
Is the Da-Lite 29216 TAA compliant?
Yes, the 29216 is TAA compliant and is manufactured in the US.
