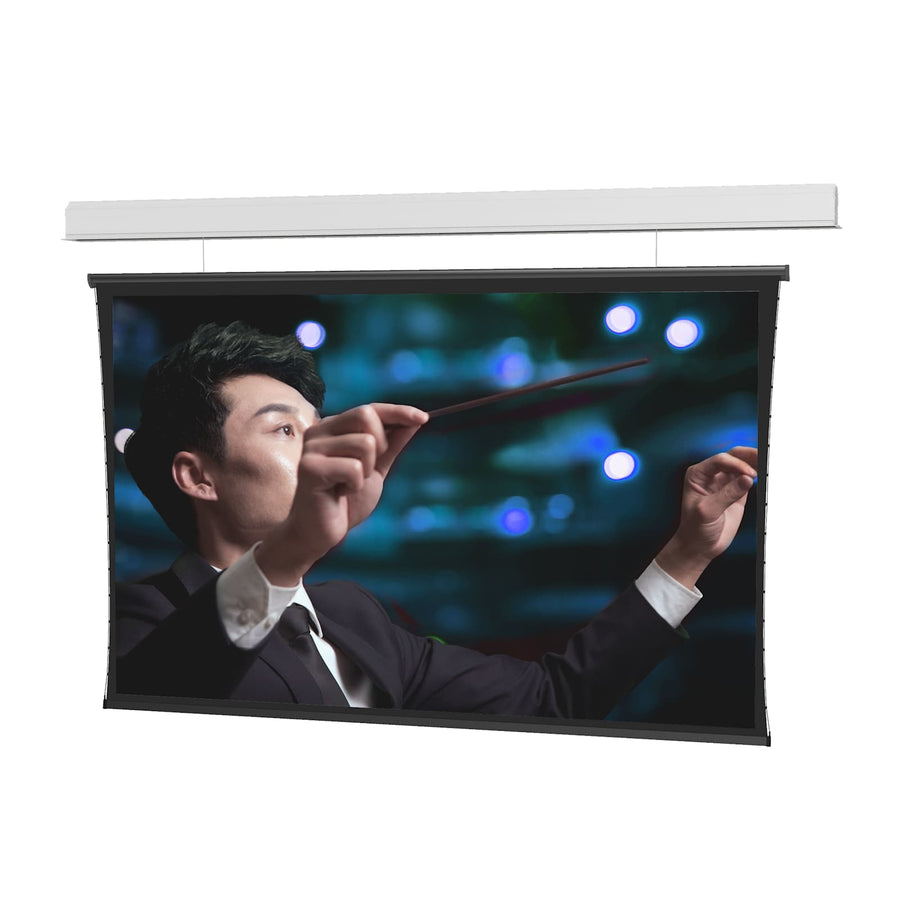

Da-Lite Wireline Advantage, 92" x 164" with HD Progressive 1.0 - 29215
Large venue front projection screen measuring 92" x 164" with HD Progressive 1.0 surface and ceiling trim flange
The Da-Lite 29215 is a Wireline Advantage series projection screen designed for large venue front projection applications. This 188 in (477.5 cm) diagonal screen features an HD Progressive 1.0 surface and a 16:9 HDTV screen format. It is built to provide a seamless, smooth viewing surface via the TruGuide™ Electric Screen Tensioning System. This specific SKU includes a ceiling trim flange for recessed ceiling installations, which simplifies the process by concealing the rough opening. The system utilizes thin steel cables—up to 24 feet in length—to lower the screen to the desired viewing height, providing a much cleaner aesthetic than traditional black drop systems. This unit is powered by a standard 120V (60Hz) motor and is TAA compliant. Note that this product is scheduled for discontinuation on December 31, 2026; the final date to place orders is December 1, 2026. The direct replacement for this model is the Tensioned Myriad Conceal with SightLine DL100260L.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 188 in (477.5 cm) |
| Screen Height | 92 in (233.7 cm) |
| Shipping Weight | 693 lbs (314.3 kg) |
| Size | 92" x 164" or 188" diagonal |
| Application | Ceiling RecessedWall |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Ceiling Trim Flange |
All other specifications 7
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.0 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Radio Frequency Single Channel Wall Switch For Wireline (120V), Studio or Arena
28359$340.80
Da-Lite Radio Frequency Dry Contact Interface For Wireline (120V), Studio or Arena
71912$236.80
Da-Lite Radio Frequency Range Extender For Wireline (120V), Studio or Arena 05
35166$304.80
Da-Lite Radio Frequency RS-232 Control For Wireline (120V), Studio or Arena
29243$1,112.80
Da-Lite Replacement Radio Frequency Transmitter For Wireline (120V), Studio or Arena
99472$186.40
Questions about this part
What is the required installation method for the Da-Lite 29215?
This model is designed for ceiling recessed applications using the included ceiling trim flange. It also supports wall mounting via sliding brackets to attach the housing to the structure above a drop ceiling.
How does the cable drop system work on this screen?
The Wireline Advantage uses thin steel cables rather than black fabric drops. This allows for a much cleaner aesthetic in high-ceiling rooms and can accommodate a drop length of up to 24 feet.
What additional controls are compatible with this 120V motor?
You can add a Da-Lite Radio Frequency Single Channel Wall Switch (SKU 28359) or a Radio Frequency RS-232 Control (SKU 29243) for integrated system management.
What is the replacement for this model once it is discontinued?
The direct replacement is the Tensioned Myriad Conceal with SightLine (model DL100260L), which features a quieter cable drop system.
Does this screen include the necessary installation tools?
The screen is designed for simple installation with sliding brackets, but the package does not include the specific tools required for mounting to your structure.
