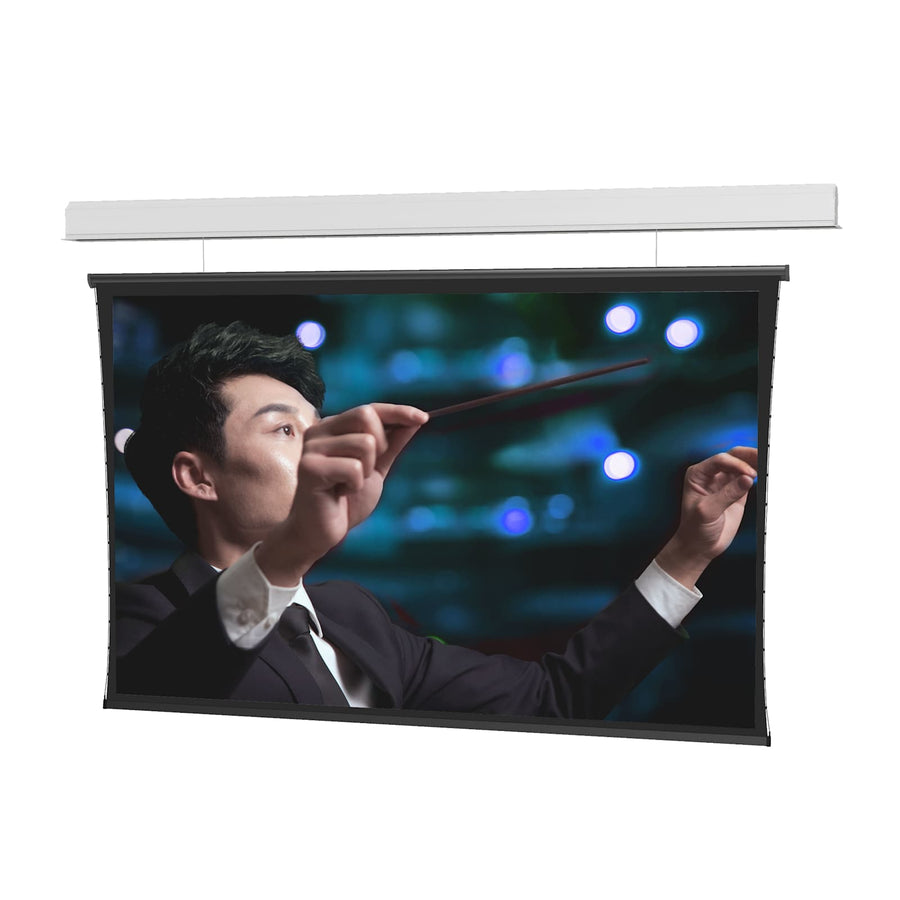

Da-Lite Wireline Advantage, 110" x 176" with HD Progressive 1.0 - 29247
Large venue electric projection screen with 110" x 176" dimensions and HD Progressive 1.0 surface, featuring ceiling trim flange for recessed installation
The Da-Lite 29247 is a Wireline Advantage series electric projection screen designed for large venue applications. Measuring 110" x 176" (528.3 cm x 279.4 cm) with a 208" diagonal, this screen utilizes thin steel cables to drop the surface to an appropriate viewing height, providing a much cleaner aesthetic than traditional black drop systems. This specific model includes a ceiling trim flange, which simplifies installation in ceiling recessed applications by concealing the rough opening. For installers, the sliding installation brackets allow the housing to be attached easily to structures above a drop ceiling. The screen features the HD Progressive 1.0 surface, which provides high-resolution front projection capabilities. It is equipped with a standard 120V (60Hz) radio frequency motor and utilizes the TruGuide™ Electric Screen Tensioning System to ensure a smooth, optimal viewing surface. This TAA compliant product is manufactured in the US and is an active SKU until it is replaced by the Myriad Conceal series.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 208 in (528.3 cm) |
| Screen Height | 110 in (279.4 cm) |
| Shipping Weight | 736 lbs (333.8 kg) |
| Size | 110" x 176" or 208" diagonal |
| Application | Ceiling RecessedWall |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Product Selection | Ceiling Trim Flange |
All other specifications 7
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.0 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Radio Frequency Single Channel Wall Switch For Wireline (120V), Studio or Arena
28359$340.80
Da-Lite Radio Frequency Dry Contact Interface For Wireline (120V), Studio or Arena
71912$236.80
Da-Lite Radio Frequency Range Extender For Wireline (120V), Studio or Arena 05
35166$304.80
Da-Lite Radio Frequency RS-232 Control For Wireline (120V), Studio or Arena
29243$1,112.80
Da-Lite Replacement Radio Frequency Transmitter For Wireline (120V), Studio or Arena
99472$186.40
Questions about this part
Will the Da-Lite 29247 fit my ceiling installation?
Yes, this SKU features a ceiling trim flange specifically designed to conceal the rough opening in ceiling recessed applications.
What is the surface type for the 29247 model?
The 29247 uses the HD Progressive 1.0 surface, which is optimized for high-resolution front projection.
Does this screen support RS-232 or wall switch control?
The standard motor includes a radio frequency remote, but you can add a Da-Lite 29243 RS-232 control or a 28359 single channel wall switch.
What is the difference between the Wireline Advantage and Myriad Conceal?
The Wireline Advantage uses steel cables for the drop, while the Myriad Conceal is the direct replacement featuring the SightLine cable drop system.
What do I need for a dry contact interface installation?
For dry contact integration, you will need the Da-Lite 71912 Radio Frequency Dry Contact Interface designed for 120V Wireline screens.
