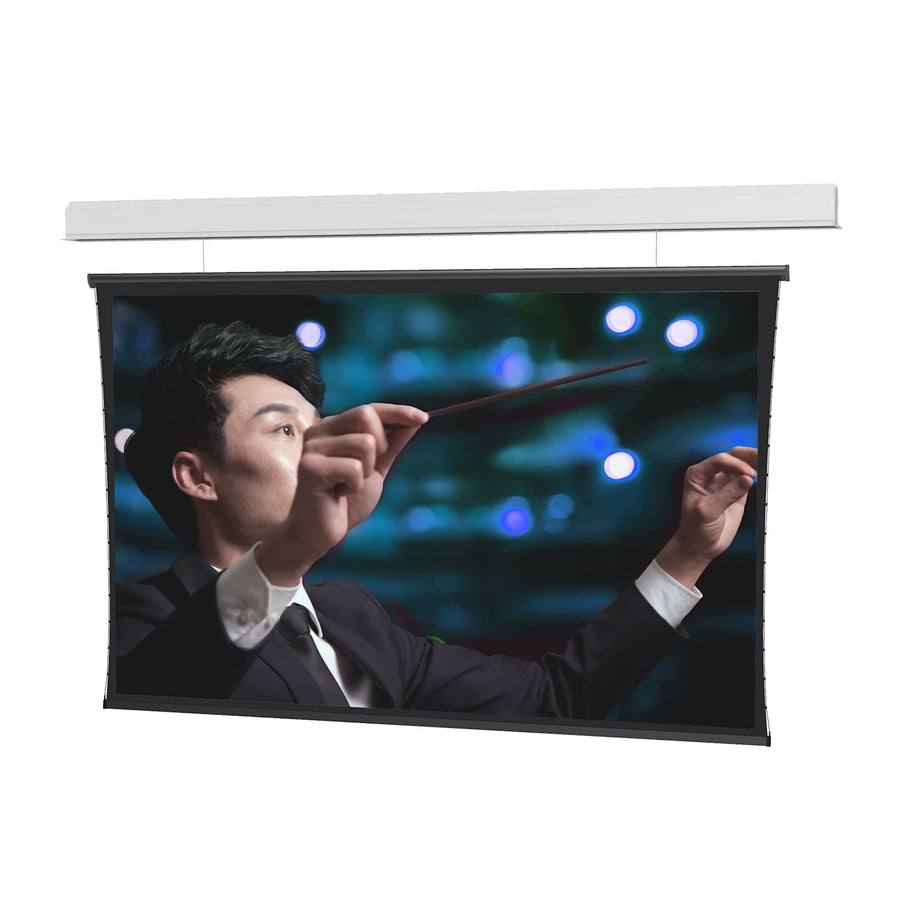

Da-Lite Wireline Advantage, 100" x 160" with HD Progressive 1.1 Contrast - 29744G
Large venue front projection screen, 100" x 160" wide format with HD Progressive 1.1 Contrast surface
The Da-Lite 29744G is a Wireline Advantage series screen designed for large venue applications. This 100" x 160" wide format (16:10) electric screen utilizes a front projection system with an HD Progressive 1.1 Contrast surface to provide a high-resolution viewing area. It is designed for either ceiling recessed or wall mounting. For ceiling recessed installations, the flangeless case includes built-in ceiling trim and sliding installation brackets, which simplify the process by eliminating the need to conceal a rough opening with separate trim. For non-ceiling recessed applications, this SKU is available as a flangeless case. The system features a standard 120V (60Hz) radio frequency motor and is UL Plenum rated. To maintain a smooth, professional appearance in rooms with high ceilings, the Wireline uses thin steel cables for drops of up to 24 feet rather than traditional black fabric. The screen is tensioned via the TruGuide™ Electric Screen Tensioning System to ensure a seamless, optimal viewing surface. This product is TAA compliant and is scheduled for discontinuation on December 31, 2026, with the last order date being December 1, 2026.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 189 in (480.1 cm) |
| Screen Height | 100 in (254 cm) |
| Shipping Dimensions | 204" x 18" x 23" (518.2 x 45.7 x 58.4 cm) |
| Shipping Weight | 693 lbs (314.3 kg) |
| Size | 100" x 160" or 189" diagonal |
| Application | Ceiling RecessedWall |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
All other specifications 10
| Product Selection | Flangeless Case |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.1 Contrast |
| TAA Compliant | Yes |
| UPC | 717068464339 |
| Certifications | TAA |
Resources
You'll need these with it
Da-Lite Radio Frequency Single Channel Wall Switch For Wireline (120V), Studio or Arena
28359$340.80
Da-Lite Radio Frequency Dry Contact Interface For Wireline (120V), Studio or Arena
71912$236.80
Da-Lite Radio Frequency Range Extender For Wireline (120V), Studio or Arena 05
35166$304.80
Da-Lite Radio Frequency RS-232 Control For Wireline (120V), Studio or Arena
29243$1,112.80
Da-Lite Wireline Advantage Wall Mount Brackets
29485$612.80
Da-Lite Replacement Radio Frequency Transmitter For Wireline (120V), Studio or Arena
99472$186.40
Questions about this part
Will the Da-Lite 29744G fit my large venue ceiling height?
Yes, the Wireline Advantage series can accommodate viewing heights in high-ceiling rooms by utilizing thin steel cables with drops of up to 24 feet.
What is the installation requirement for recessed ceilings?
This flangeless case features sliding installation brackets and built-in ceiling trim, which allows you to install the housing without needing to conceal a rough opening with additional trim.
What additional controls are available for the 29744G?
You can add a Da-Lite 28359 single channel wall switch, a 29243 RS-232 control interface, or a 71912 dry contact interface for advanced system integration.
How does the surface affect image quality?
The HD Progressive 1.1 Contrast surface is designed for front projection, and the standard black backing helps retain projected brightness on the screen surface.
Which document should I use for submittals or installation?
You can refer to the Wireline Advantage Installation and Connections PDF for mounting details or the Wireline Advantage Specification Sheet for technical data.
