Da-Lite Wireline Advantage, 100" x 160" with HD Progressive 1.0 - 29239G
Wireline Advantage front projection screen, 100" x 160" size, featuring HD Progressive 1.0 surface and tensioned cabling
The Da-Lite 29239G is a large venue Wireline Advantage series screen designed for high-quality front projection in environments with high ceilings. This 100" x 160" (254 cm x 406.4 cm) screen utilizes a wide 16:10 format with an HD Progressive 1.0 surface to ensure a smooth, high-resolution image. Instead of using traditional black fabric drops, this system employs thin steel cables up to 24' long, allowing the screen to be lowered to an appropriate viewing height for a clean, professional aesthetic. This model features a flangeless case suitable for ceiling recessed or wall mounting. Installation is simplified through the use of sliding brackets and built-in ceiling trim, which helps conceal the rough opening. The unit is equipped with a standard 120V (60Hz) radio frequency motor and includes a hand-held remote. The TruGuide™ Electric Screen Tensioning System maintains an optimal, seamless surface. This product is TAA compliant and features a UL plenum rated case. Note that this specific SKU is scheduled for discontinuation on December 31, 2026.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 189 in (480.1 cm) |
| Screen Height | 100 in (254 cm) |
| Shipping Dimensions | 204" x 18" x 23" (518.2 x 45.7 x 58.4 cm) |
| Shipping Weight | 693 lbs (314.3 kg) |
| Size | 100" x 160" or 189" diagonal |
| Application | Ceiling RecessedWall |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
All other specifications 10
| Product Selection | Flangeless Case |
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.0 |
| TAA Compliant | Yes |
| UPC | 717068450233 |
| Certifications | TAA |
Resources
You'll need these with it

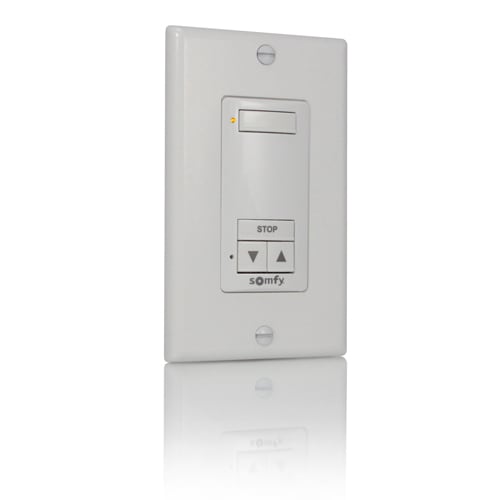

Da-Lite Radio Frequency Single Channel Wall Switch For Wireline (120V), Studio or Arena
28359$340.80

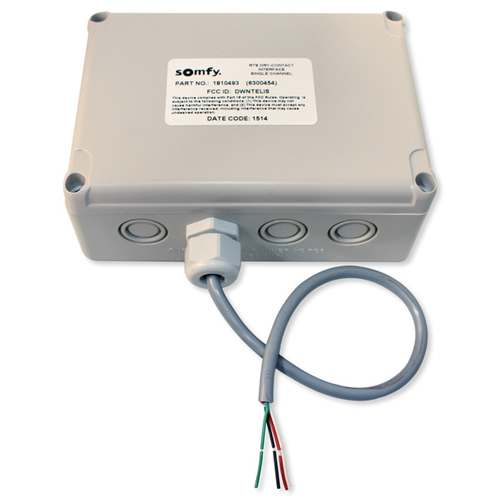

Da-Lite Radio Frequency Dry Contact Interface For Wireline (120V), Studio or Arena
71912$236.80

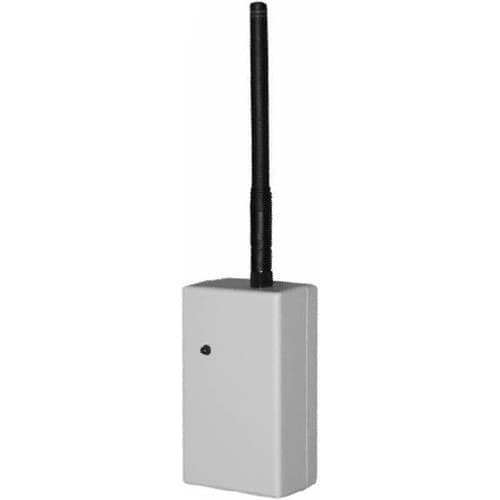

Da-Lite Radio Frequency Range Extender For Wireline (120V), Studio or Arena 05
35166$304.80

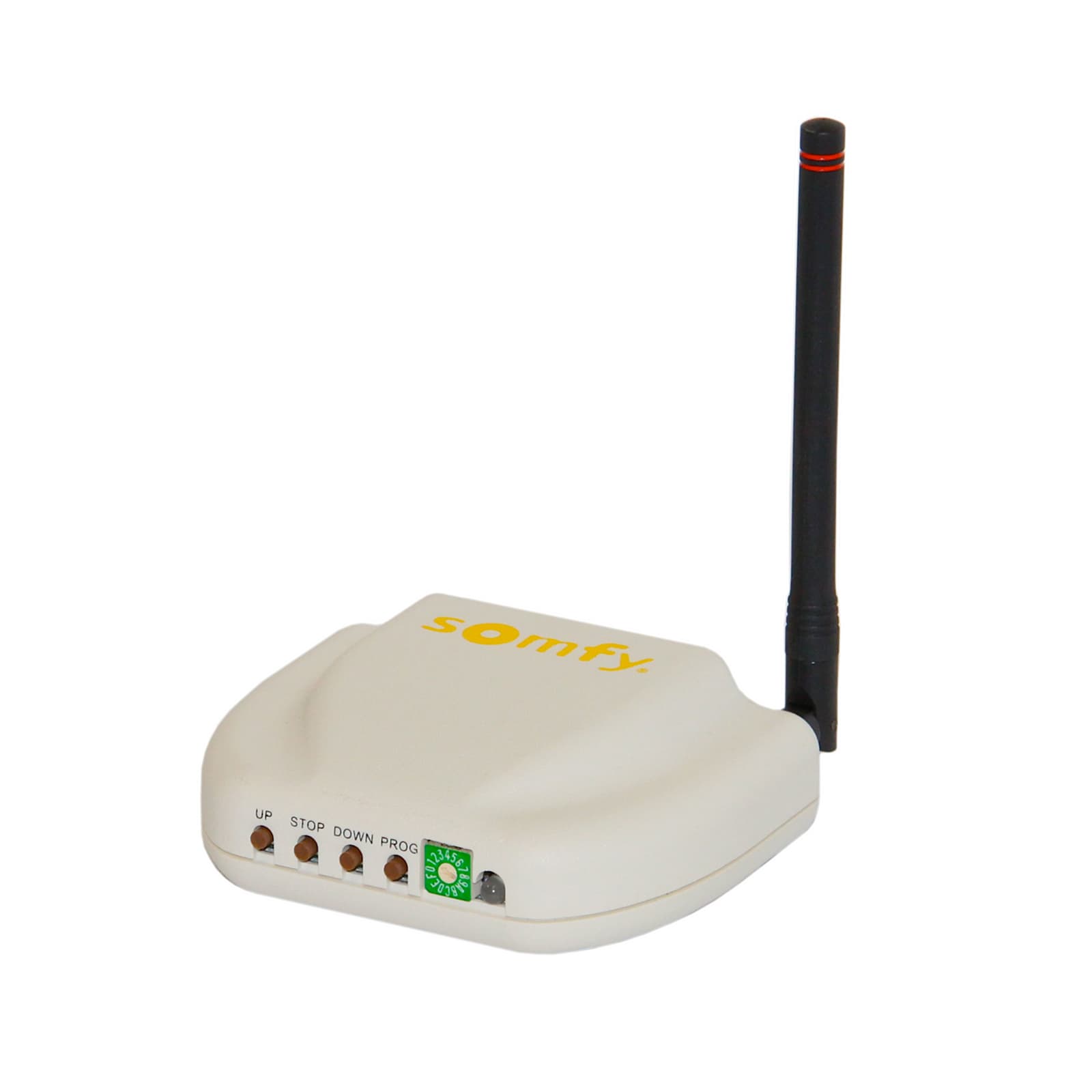

Da-Lite Radio Frequency RS-232 Control For Wireline (120V), Studio or Arena
29243$1,112.80

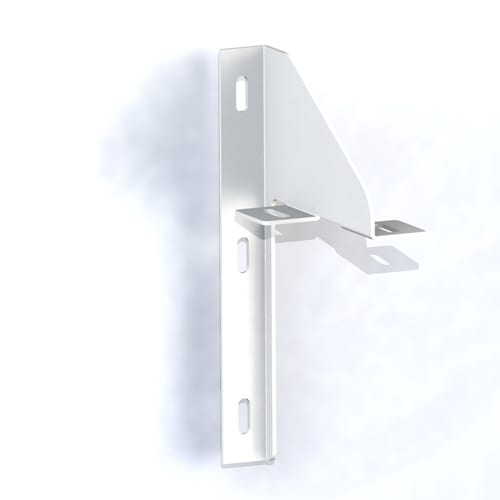

Da-Lite Wireline Advantage Wall Mount Brackets
29485$612.80

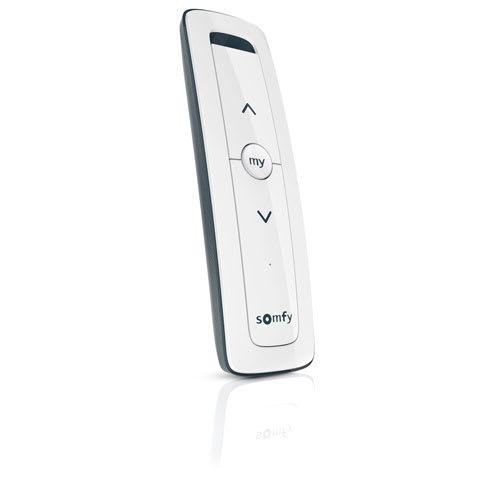

Da-Lite Replacement Radio Frequency Transmitter For Wireline (120V), Studio or Arena
99472$186.40
Questions about this part
Will the Da-Lite 29239G fit my installation height?
Yes, the Wireline system uses steel cables up to 24' to accommodate high ceilings, allowing you to set the screen at the ideal viewing height.
What mounting options are available for this screen?
The 29239G is a flangeless case designed for either ceiling recessed or wall applications.
What control interfaces are compatible with the 29239G?
The standard 120V motor supports a hand-held remote and dry contact interface. Optional accessories include a single channel wall switch (28359) or RS-232 control (29243).
Is the 29239G suitable for plenum rated environments?
Yes, this model features a UL plenum rated case, making it suitable for required air space applications.
How does this differ from the Myriad Reveal series?
While this Wireline series uses steel cables, the Myriad Reveal (replacement model) utilizes a SightLine cable drop system for quieter operation.
