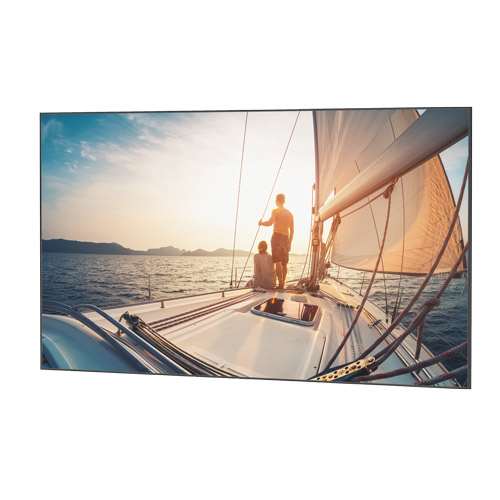

Da-Lite UTB Contour, 65" x 153" with HD Progressive 1.1 Contrast - 23911
Ultrawide 2.35:1 Cinemascope fixed frame screen, 65" x 153" with HD Progressive 1.1 Contrast surface and black finish
The Da-Lite 23911 is a fixed frame UTB Contour series screen designed for wall applications. Featuring a 65" x 153" size with a 166" diagonal, this 21:9 Ultrawide Format screen uses a Cinemascope (2.35:1) aspect ratio to support hybrid video conferencing standards. The surface features HD Progressive 1.1 Contrast, which is engineered for high-resolution 1080p, 4K, and Ultra HD projection. This model utilizes an ultra-thin bezel frame that sits only 1-3/8” off the wall, creating a low-profile design that mimics the appearance of a large flat panel. The acid-etched black finish provides a seamless look, while standard black backing is used to retain projected brightness. This TAA compliant product is manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 166 in (421.6 cm) |
| Screen Height | 65 in (165.1 cm) |
| Shipping Weight | 79 lbs (35.8 kg) |
| Size | 65" x 153" or 166" diagonal |
| Application | Wall |
| Federal Ops Country of Origin | US |
| Finish | UTB Acid Etched Black |
| Frame Type | Acid Etched Black |
All other specifications 6
| Projection Type | Front Projection |
| Screen Format | Cinemascope (2.35:1) |
| Screen Surface Features | High Resolution |
| Screen Type | Fixed Frame |
| Surface | HD Progressive 1.1 Contrast |
| Certifications | TAA |
Resources
Questions about this part
Is the Da-Lite 23911 suitable for 4K video conferencing?
Yes, the HD Progressive 1.1 Contrast surface is designed specifically for 1080p, 4K, and Ultra HD resolution.
How much space does the 23911 take up from the wall?
This low-profile fixed frame design sits 1-3/8" off the wall to maintain a flat panel appearance.
What aspect ratio is this screen format?
The 23911 features a 2.35:1 Cinemascope format, which is the 21:9 Ultrawide standard.
Does this screen meet TAA requirements?
Yes, the Da-Lite 23911 is TAA compliant and is made in the US.
Which document should I use for submittals?
You can refer to the UTB Contour Specification Sheet (PDF) for detailed technical data or the UTB Contour CAD Models for integration planning.
