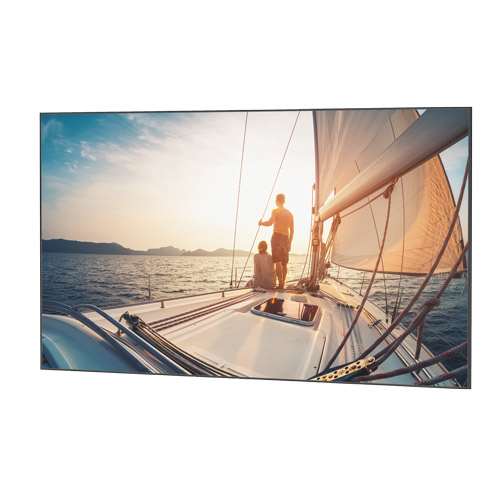

Da-Lite UTB Contour, 65" x 153" with Da-Mat - 23910
Fixed frame ultra-thin bezel screen in 21:9 Ultrawide format, measuring 65" x 153" with a Da-Mat surface
The Da-Lite 23910 UTB Contour is a fixed frame projection screen designed for wall application. This unit features a 65" x 153" dimension, providing a 166" diagonal view area in a 2.35:1 Cinemascope format. Built for hybrid video conferencing environments, its 21:9 Ultrawide layout ensures that all participants, both in-person and virtual, are positioned equitably on screen. This model utilizes a Da-Mat surface, which is a standard resolution surface featuring seamless properties and a standard black backing to retain projected brightness. The UTB Contour series is engineered for a low-profile installation, sitting only 1-3/8" off the wall to mimic the appearance of a large flat panel display. The frame features an Acid Etched Black finish for a clean, professional look. This TAA compliant product is manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 166 in (421.6 cm) |
| Screen Height | 65 in (165.1 cm) |
| Shipping Weight | 79 lbs (35.8 kg) |
| Size | 65" x 153" or 166" diagonal |
| Application | Wall |
| Federal Ops Country of Origin | US |
| Finish | UTB Acid Etched Black |
| Frame Type | Acid Etched Black |
All other specifications 6
| Projection Type | Front Projection |
| Screen Format | Cinemascope (2.35:1) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Fixed Frame |
| Surface | Da-Mat |
| Certifications | TAA |
Resources
Questions about this part
Will this Da-Lite 23910 fit my video conferencing setup?
Yes, this screen uses a 2.35:1 Cinemascope format, which is the 21:9 Ultrawide standard used to ensure equitable viewing in hybrid conferencing environments.
How far from the wall will the UTB Contour sit once installed?
The UTB Contour is designed for a low-profile installation, maintaining a distance of only 1-3/8" off the wall to provide a flat-panel look.
What type of projection surface is included with this model?
The 23910 comes equipped with a Da-Mat surface, which features a standard resolution and a black backing to help retain brightness.
Is this product TAA compliant for government contracts?
Yes, the Da-Lite 23910 is TAA compliant and is manufactured in the US.
Which documentation should I use for project submittals?
For technical submittals, you can use the UTB Contour Specification Sheet or the UTB Contour CAD Models provided in the resources section.
