Da-Lite UTB Contour, 60.75" x 144" with HD Progressive 1.3 - DL15753
Ultrawide 21:9 fixed frame screen, 156" diagonal, 60.75" x 144" with HD Progressive 1.3 surface

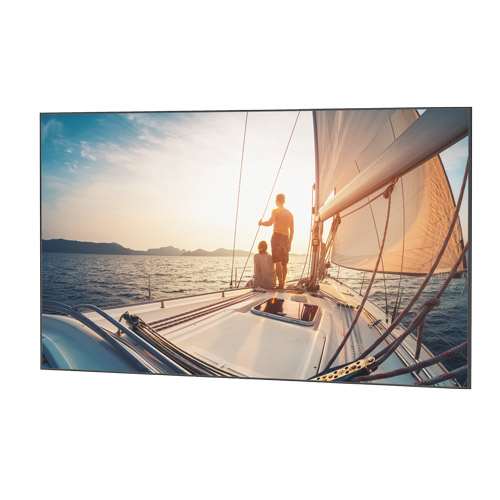

The Da-Lite DL15753 is a UTB Contour series fixed frame screen designed with an ultra-thin bezel and a low-profile architecture. Measuring 60.75" x 144" with a 156" diagonal, this ultrawide 21:9 format screen is engineered to emulate the appearance of a large flat-panel display. This specific format is increasingly used for hybrid video conferencing solutions to ensure all participants are viewed equitably. The screen sits 1-3/8” off the wall, maintaining a clean, modern aesthetic. It features the HD Progressive 1.3 surface, which is specifically designed for high-resolution projection, including 1080p, 4K, and Ultra HD content. The black frame finish is paired with standard black backing to assist in retaining projected brightness. This TAA-compliant product is manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 156 in (396.2 cm) |
| Screen Height | 60.75 in (154.3 cm) |
| Shipping Dimensions | 152.5" x 8.25" x 9" (387.4 x 21 x 22.9 cm) |
| Shipping Weight | 80 lbs (36.3 kg) |
| Size | 60.75" x 144" or 156" diagonal |
| Application | Wall |
| Color | Black |
| Federal Ops Country of Origin | US |
All other specifications 9
| Finish | UTB Acid Etched |
| Projection Type | Front Projection |
| Screen Format | Ultrawide (21:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Fixed Frame |
| Surface | HD Progressive 1.3 |
| TAA Compliant | Yes |
| UPC | 840236944194 |
| Certifications | TAA |
Resources
Questions about this part
Will this Da-Lite DL15753 fit my 21:9 video conferencing setup?
Yes, the DL15753 is specifically designed in a 21:9 Ultrawide format, making it ideal for hybrid video conferencing where equitable viewing is required.
Is this screen suitable for 4K or Ultra HD projection?
Yes, the HD Progressive 1.3 surface included with this SKU is designed specifically to support 1080p, 4K, and Ultra HD projection types.
How much space does the screen require from the wall?
The UTB Contour series features a low-profile design that sits 1-3/8” off the wall to mimic a large flat-panel display.
What is the TAA compliance status of the DL15753?
The DL15753 is TAA compliant and is manufactured in the USA.
Which document should I use for submittals or installation?
Installers can refer to the UTB Contour Specification Data Sheet or the UTB Contour Instructions PDF for technical and installation details.
