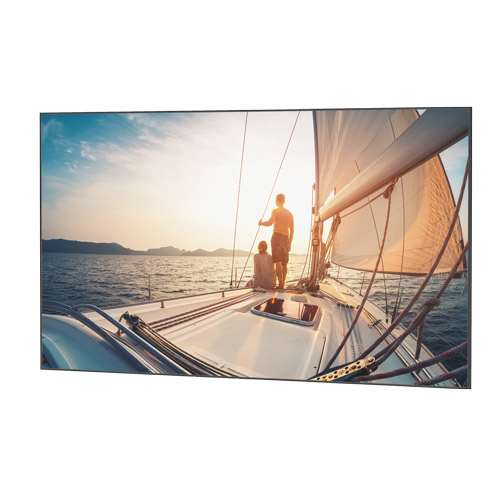

Da-Lite UTB Contour, 40.5" x 96" with HD Progressive 1.3 - DL15741
Ultrawide 21:9 fixed frame screen, 40.5" x 96" format, featuring HD Progressive 1.3 surface and a low-profile design
The Da-Lite DL15741 is a UTB Contour series fixed frame screen designed for professional video conferencing environments. Featuring a 21:9 Ultrawide format, this 40.5" x 96" (104" diagonal) screen is optimized for hybrid video conferencing solutions, ensuring all participants in a room are viewed equitably on a single display. This specific model utilizes the HD Progressive 1.3 surface, which is engineered for high-resolution projection including 1080p, 4K, and Ultra HD content. The UTB Contour features an ultra-thin bezel and a low-profile design that sits only 1-3/8” off the wall, providing a seamless appearance similar to a large flat-panel display. The black frame finish and standard black backing work together to retain projected brightness for high-quality front projection. As a TAA compliant product, the DL15741 is suitable for various federal and commercial installations requiring specific compliance standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 104 in (264.2 cm) |
| Screen Height | 40.5 in (102.9 cm) |
| Shipping Dimensions | 104.5" x 8.25" x 9" (265.4 x 21 x 22.9 cm) |
| Shipping Weight | 50 lbs (22.7 kg) |
| Size | 40.5" x 96" or 104" diagonal |
| Application | Wall |
| Color | Black |
| Federal Ops Country of Origin | US |
All other specifications 9
| Finish | UTB Acid Etched |
| Projection Type | Front Projection |
| Screen Format | Ultrawide (21:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Fixed Frame |
| Surface | HD Progressive 1.3 |
| TAA Compliant | Yes |
| UPC | 840236944071 |
| Certifications | TAA |
Resources
Questions about this part
Is the Da-Lite DL15741 suitable for 4K content?
Yes, the HD Progressive 1.3 surface is designed specifically to handle 1080p, 4K, and Ultra HD projection resolutions.
What is the aspect ratio of this screen?
The DL15741 is an Ultrawide 21:9 format screen, measuring 40.5" x 96" with a 104" diagonal.
How far from the wall does the screen sit once installed?
The UTB Contour series features a low-profile design that remains 1-3/8" off the wall during installation.
Is this screen TAA compliant?
Yes, the DL15741 is TAA compliant and is of US origin for Federal Ops.
What documentation is available for submittals?
Installers can access the UTB Contour Specification Sheet, CAD models, BIM files, and installation instructions via the Resources tab.
