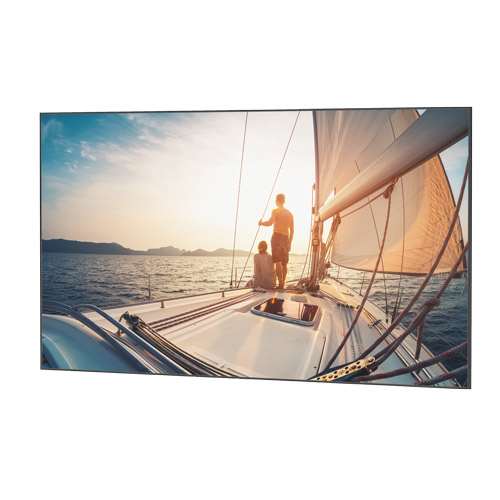

Da-Lite UTB Contour, 40.5" x 96" with HD Progressive 1.1 Contrast - DL15740
Ultrawide 21:9 fixed frame screen, 40.5" x 96" format, featuring HD Progressive 1.1 Contrast surface and ultra-thin bezel
The Da-Lite DL15740 is an ultrawide 21:9 format fixed frame screen designed to replicate the appearance of a large flat-panel display. This 104 in (264.2 cm) diagonal screen measures 40.5 in (102.9 cm) in height and 96 in in width. It features an HD Progressive 1.1 Contrast surface, which is engineered for high-resolution performance with 1080p, 4K, and Ultra HD projection. The UTB Contour series provides a low-profile installation, sitting just 1-3/8" off the wall to maintain a sleek aesthetic in professional environments. The screen surface features a seamless, acid-etched finish and a standard black backing to help retain projected brightness. This TAA compliant model is a fixed frame solution intended for front projection applications. Its wide aspect ratio is specifically optimized for hybrid video conferencing, ensuring all participants in a room are viewed equitably on the screen.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 104 in (264.2 cm) |
| Screen Height | 40.5 in (102.9 cm) |
| Shipping Dimensions | 104.5" x 8.25" x 9" (265.4 x 21 x 22.9 cm) |
| Shipping Weight | 50 lbs (22.7 kg) |
| Size | 40.5" x 96" or 104" diagonal |
| Application | Wall |
| Color | Black |
| Federal Ops Country of Origin | US |
All other specifications 9
| Finish | UTB Acid Etched |
| Projection Type | Front Projection |
| Screen Format | Ultrawide (21:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Fixed Frame |
| Surface | HD Progressive 1.1 Contrast |
| TAA Compliant | Yes |
| UPC | 840236944064 |
| Certifications | TAA |
Resources
Questions about this part
Will the DL15740 fit my hybrid video conferencing setup?
Yes, this DL15740 is an Ultrawide (21:9) format screen, which is the standard for displaying hybrid video conferencing solutions.
What is the installation depth for the DL15740?
The UTB Contour series features a low profile design that sits 1-3/8" off the wall.
Is this screen compatible with 4K projection?
Yes, the HD Progressive 1.1 Contrast surface is designed for 1080p, 4K, and Ultra HD projection.
What documentation is available for submittals?
You can access the UTB Contour Specification Sheet, CAD models, and BIM files in the Resources section for technical submittals.
Is the DL15740 TAA compliant?
Yes, this product is TAA compliant and is manufactured in the US.
