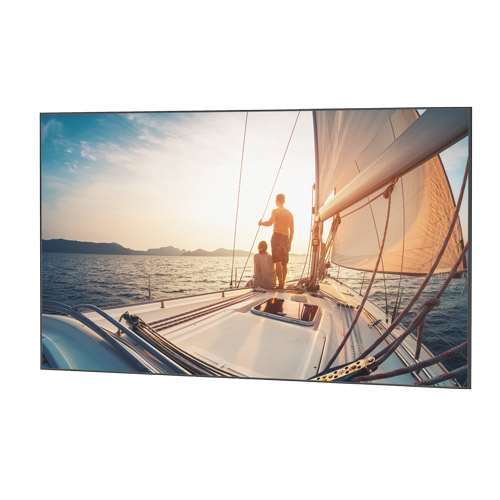

Da-Lite UTB Contour, 108" x 192" with Parallax Stratos 1.0 - 29948
108" x 192" fixed frame screen with Parallax Stratos 1.0 ALR surface, acid etched black frame, and 220" diagonal
The Da-Lite UTB Contour 29948 is a fixed frame projection screen designed for wall applications, providing a low-profile aesthetic that mimics a large flat-panel display. This specific model features a 108" x 192" dimensions and a 220" diagonal, utilizing a 16:9 HDTV screen format. The Parallax Stratos 1.0 surface provides high resolution and Ambient Light Rejecting (ALR) capabilities, making it suitable for environments with controlled lighting. The frame features an acid etched black finish and maintains a low profile, sitting only 1-3/8" off the wall once installed. This TAA compliant screen utilizes a standard black backing to help retain projected brightness and ensure seamless surfaces for high-definition viewing.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 220 in (558.8 cm) |
| Screen Height | 108 in (274.3 cm) |
| Shipping Weight | 124 lbs (56.3 kg) |
| Size | 108" x 192" or 220" diagonal |
| Application | Wall |
| Federal Ops Country of Origin | US |
| Finish | UTB Acid Etched Black |
| Frame Type | Acid Etched Black |
All other specifications 6
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Ambient Light Rejecting (ALR)High Resolution |
| Screen Type | Fixed Frame |
| Surface | Parallax Stratos 1.0 |
| Certifications | TAA |
Resources
Questions about this part
Will the UTB Contour 29948 fit my display configuration?
This unit is a 108" x 192" fixed frame screen with a 220" diagonal, optimized for 16:9 HDTV formats.
How far from the wall will this screen sit once installed?
The UTB Contour series is designed for a low-profile installation, sitting 1-3/8" off the wall.
What surface technology is used on this model?
This SKU features the Parallax Stratos 1.0 surface, which includes Ambient Light Rejecting (ALR) and high-resolution properties.
Is this screen suitable for high-brightness environments?
Yes, the Parallax Stratos 1.0 surface is an Ambient Light Rejecting (ALR) surface, and the black backing is designed to retain projected brightness.
Does this product meet TAA requirements?
Yes, this model is TAA compliant for use in projects requiring adherence to the Trade Agreements Act.
