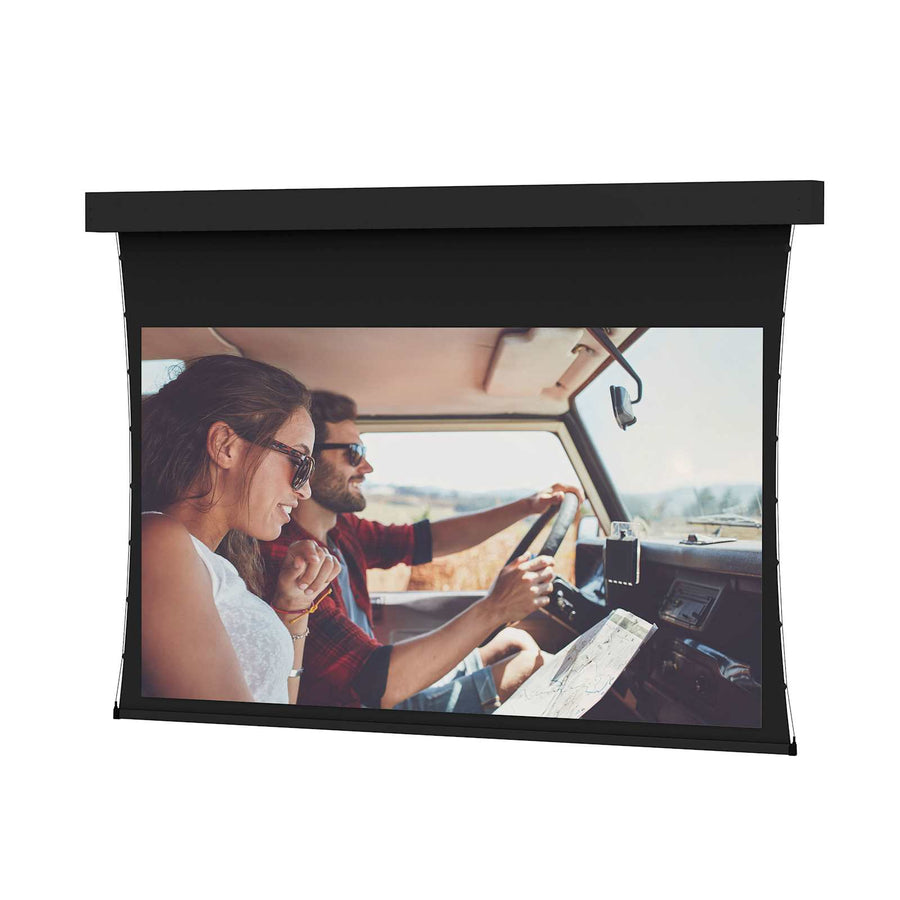

Da-Lite Tensioned Professional Electrol, 92" x 164" with HD Progressive 1.3 - 14132E
92" x 164" professional tensioned electric projection screen with HD Progressive 1.3 surface and 220V motor for export
The Da-Lite 14132E is a large venue Tensioned Professional Electrol series screen measuring 92" x 164", providing an 188" diagonal projection area. This electric screen features the HD Progressive 1.3 surface designed for high-resolution front projection. For international installations, this specific SKU is equipped with a 220V (50Hz) motor designed for export. The screen utilizes TruGuide™ Electric Screen Tensioning and Smooth Roll Technology to maintain a perfectly flat, seamless viewing surface. The housing is a black painted wooden case featuring adjustable brackets that allow for multiple installation methods, including ceiling recessed, wall mounted, or suspended from the ceiling. This model includes a standard black backing to retain projected brightness. Please note that this SKU does not include the ceiling trim flange or a painted automatic closure door; those features are found in the Tensioned Advantage Series. This TAA compliant product is manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 188 in (477.5 cm) |
| Screen Height | 92 in (233.7 cm) |
| Shipping Dimensions | 192.75" x 15.75" x 25.3" (489.6 x 40 x 64.3 cm) |
| Shipping Weight | 480.15 lbs (217.8 kg) |
| Size | 92" x 164" or 188" diagonal |
| Application | Ceiling Recessed |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 9
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.3 |
| TAA Compliant | Yes |
| UPC | 717068716957 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will this Da-Lite 14132E work with my 220V power supply?
Yes, this specific SKU is equipped with a 220V (50Hz) motor specifically for export use.
Can the 14132E be installed in a recessed ceiling?
Yes, this model is designed for ceiling recessed, wall mounted, or suspended installations using its adjustable brackets.
What is the difference between this and the Tensioned Advantage Series?
Unlike the Advantage Series, this model does not include the ceiling trim flange or a painted automatic closure door.
Is this screen suitable for high-resolution front projection?
Yes, the 14132E features the HD Progressive 1.3 surface designed for high-resolution front projection applications.
Which documents are available for submittals?
You can access the Tensioned Professional Specification Sheet, CSI 3-Part Specifications, and CAD/BIM models in the documentation section.
