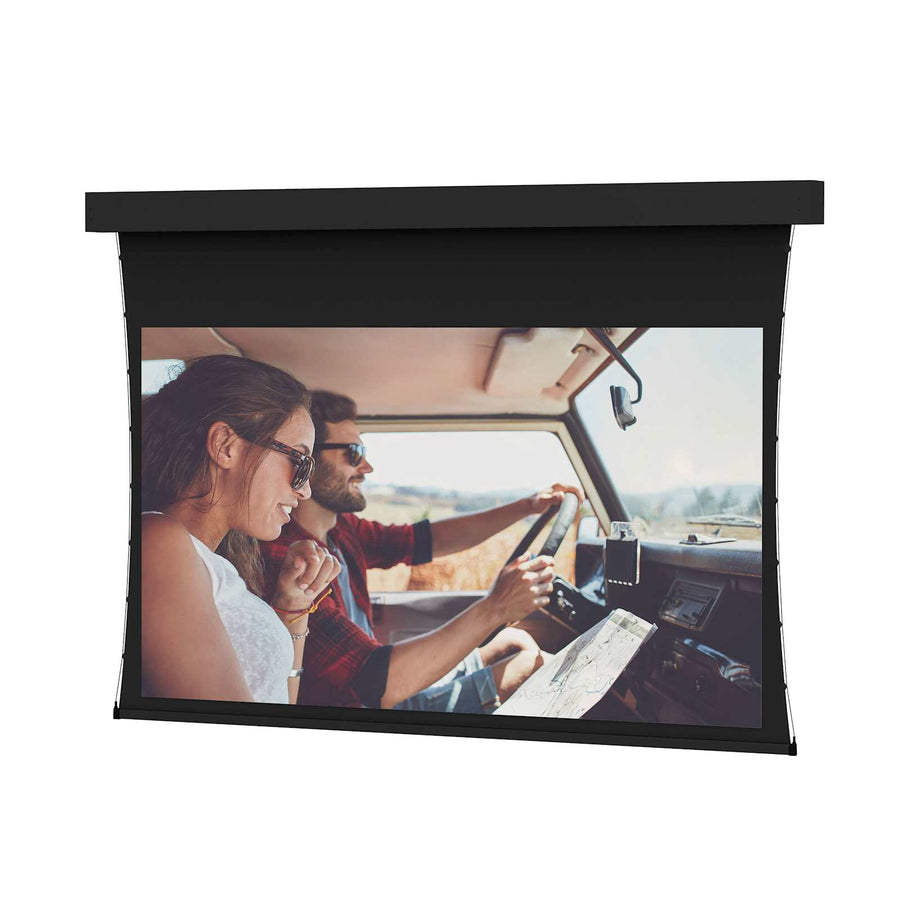

Da-Lite Tensioned Professional Electrol, 92" x 164" with Da-Mat - 99925E
Large venue tensioned electric screen with Da-Mat surface, 92" x 164" (188" diagonal) for front projection
The Da-Lite 99925E is a Tensioned Professional Electrol® screen designed for large venue applications requiring a perfectly flat projection surface. This 92" x 164" (188" diagonal) electric screen features a Da-Mat surface optimized for standard resolution front projection. The unit is equipped with a TruGuide™ Electric Screen Tensioning System to ensure optimal surface smoothness, alongside Smooth Roll Technology to maintain a flat screen profile. This model is configured with a 220V (50Hz) motor for export and includes a standard black backing to retain projected brightness. The housing is a black painted wooden case with adjustable brackets suitable for ceiling recessed, wall mounted, or suspended installations. Note that this specific SKU does not include the ceiling trim flange or a painted automatic closure door, which are available in the Tensioned Advantage Series.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 188 in (477.5 cm) |
| Screen Height | 92 in (233.7 cm) |
| Shipping Weight | 480.15 lbs (217.8 kg) |
| Size | 92" x 164" or 188" diagonal |
| Application | Ceiling Recessed |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
| Projection Type | Front Projection |
All other specifications 6
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will the 99925E work with my front projection system?
Yes, this screen is designed specifically for front projection using the Da-Mat surface for standard resolution applications.
Can this screen be recessed into a ceiling?
This Tensioned Professional Electrol model supports ceiling recessed, wall mounted, or suspended installation via its adjustable brackets.
What is the difference between this and the Tensioned Advantage Series?
Unlike the Tensioned Advantage Series, this SKU does not include the ceiling trim flange or a painted automatic closure door.
Does this screen include the control switch?
This unit includes a three-position, Decora-style switch, though alternative controls like the Da-Lite Single Motor Low Voltage Control System (40973E) are available.
Is this screen TAA compliant?
Yes, this product is TAA compliant, making it suitable for specific government and federal installation requirements.
