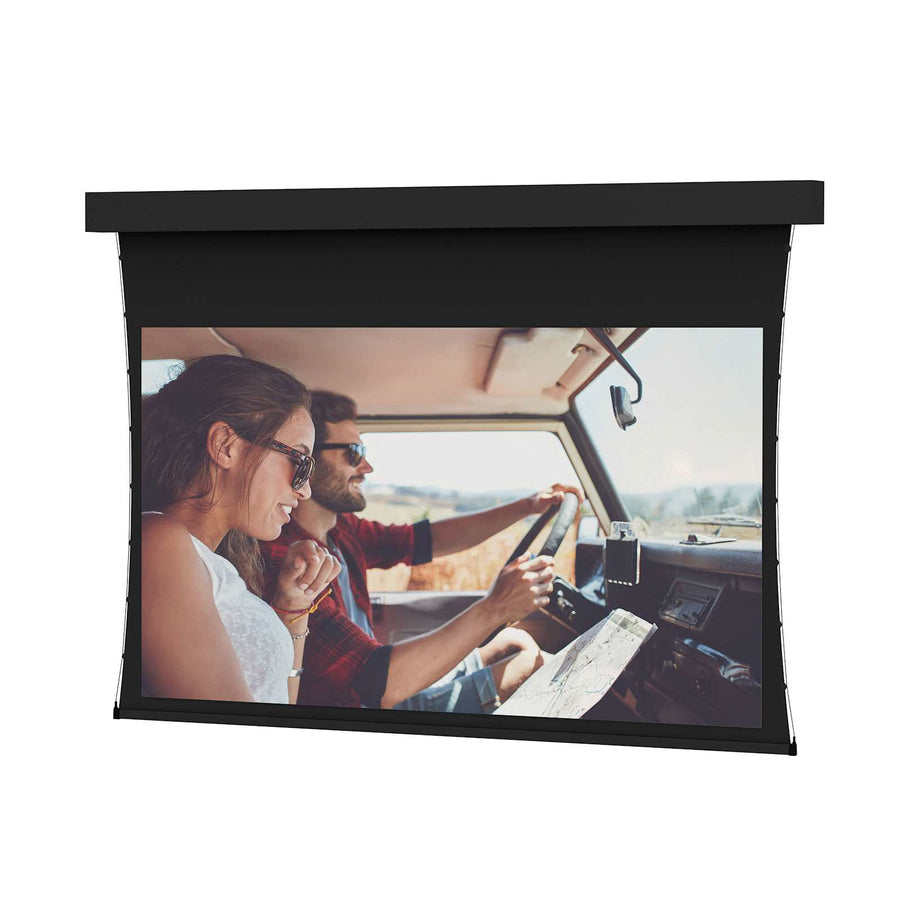

Da-Lite Tensioned Professional Electrol, 150" x 240" with Da-Tex - 14191E
Large venue rear projection screen with Da-Tex surface, 150" x 240" dimensions, and TruGuide™ electric tensioning
The Da-Lite 14191E is a high-performance Tensioned Professional Electrol® screen designed for large venue applications. This 150" x 240" (283" diagonal) screen is built for rear projection, utilizing a Da-Tex surface to deliver standard resolution clarity. To ensure a perfectly flat viewing area, the unit employs Smooth Roll Technology and the TruGuide™ Electric Screen Tensioning System. This specific model features a black painted case and a black backing to maintain projected brightness on front projection surfaces. This SKU is configured with a 220V (50Hz) motor intended for export markets. For installers looking for an aesthetic with a white automatic closure door or a ceiling trim flange, please refer to the Tensioned Advantage Series, as this Professional Electrol model provides the housing and adjustable brackets for recessed, wall-mounted, or suspended installations without those specific decorative components.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 283 in (718.8 cm) |
| Screen Height | 150 in (381 cm) |
| Shipping Dimensions | 305" x 18" x 26" (774.7 x 45.7 x 66 cm) |
| Shipping Weight | 836 lbs (379.2 kg) |
| Size | 150" x 240" or 283" diagonal |
| Application | Ceiling Recessed |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 9
| Projection Type | Rear Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Tex |
| TAA Compliant | Yes |
| UPC | 717068758476 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will this screen work for rear or front projection?
The 14191E is specifically designed for rear projection applications using the Da-Tex surface.
How is the screen mounted in a large venue?
This model features a wooden housing with adjustable brackets, allowing for ceiling recessed, wall-mounted, or suspended installations.
What is the voltage requirement for the motor?
This specific SKU (14191E) is equipped with a 220V (50Hz) motor intended for export use.
Is there a version that includes a white closure door?
This Professional Electrol model does not include a painted automatic closure door; for that aesthetic, see the Tensioned Advantage Series.
Does this screen support TAA compliance requirements?
Yes, this product is TAA Compliant and is manufactured in the US.
