Da-Lite Tensioned Professional Electrol, 146" x 260" with Parallax Stratos 1.0 - 14151E
Large venue tensioned screen featuring a Parallax Stratos 1.0 ALR surface, 220V motor, and 146" x 260" dimensions

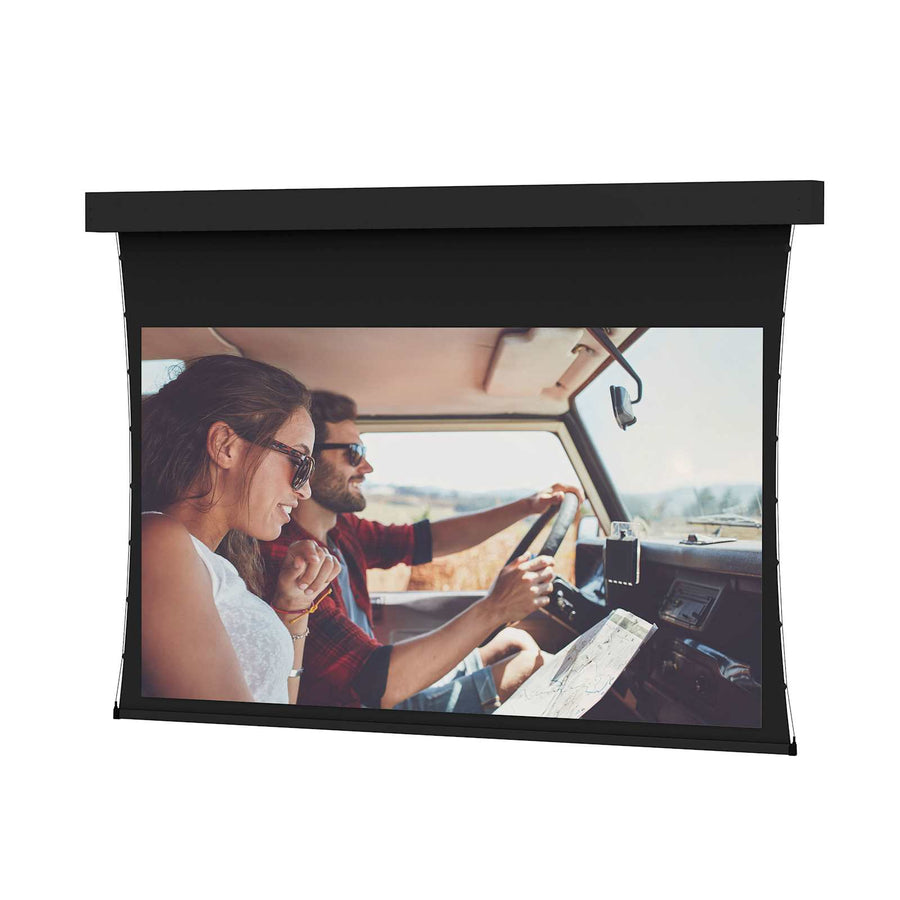

The Da-Lite 14151E is a Tensioned Professional Electrol series screen designed for large venue environments requiring a high-quality, expansive viewing surface. This electric screen features a Parallax Stratos 1.0 surface, which provides Ambient Light Rejecting (ALR) and High Resolution properties for front projection applications. Measuring 146" x 260" (298" diagonal), this model is configured with a 220V (50Hz) motor intended for export markets. The housing is constructed from wood and includes adjustable brackets, providing versatility for ceiling recessed, wall mounted, or suspended installation methods. This specific SKU utilizes TruGuide™ Electric Screen Tensioning and Smooth Roll Technology to ensure a perfectly flat, seamless viewing surface. The unit features a black painted case and standard black backing to maximize projected brightness during front projection. Please note that this model does not include a ceiling trim flange or a painted automatic closure door; installers seeking those features should refer to the Tensioned Advantage Series.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 298 in (756.9 cm) |
| Screen Height | 146 in (370.8 cm) |
| Shipping Dimensions | 295.75" x 15.75" x 25.3" (751.2 x 40 x 64.3 cm) |
| Shipping Weight | 766.53 lbs (347.7 kg) |
| Size | 146" x 260" or 298" diagonal |
| Application | Ceiling Recessed |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 9
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Ambient Light Rejecting (ALR)High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Parallax Stratos 1.0 |
| TAA Compliant | Yes |
| UPC | 717068719392 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Yes, this model is designed specifically with a 16:9 HDTV screen format.
Yes, this model is designed specifically with a 16:9 HDTV screen format.
What mounting options are available for the 14151E?
This tensioned screen can be installed via ceiling recessed, wall mounted, or suspended from the ceiling using the included adjustable brackets.
Does this screen include an automatic closure door?
No, this specific SKU does not include a painted automatic closure door or a ceiling trim flange.
What voltage is required for the 14151E motor?
This unit is equipped with a 220V (50Hz) motor specifically for export use.
Which control accessories are compatible with this screen?
Compatible accessories include the Da-Lite Single Motor Low Voltage Control System 220 Volt (40973E) and the Da-Lite Locking Switch Cover Plate (98837).
