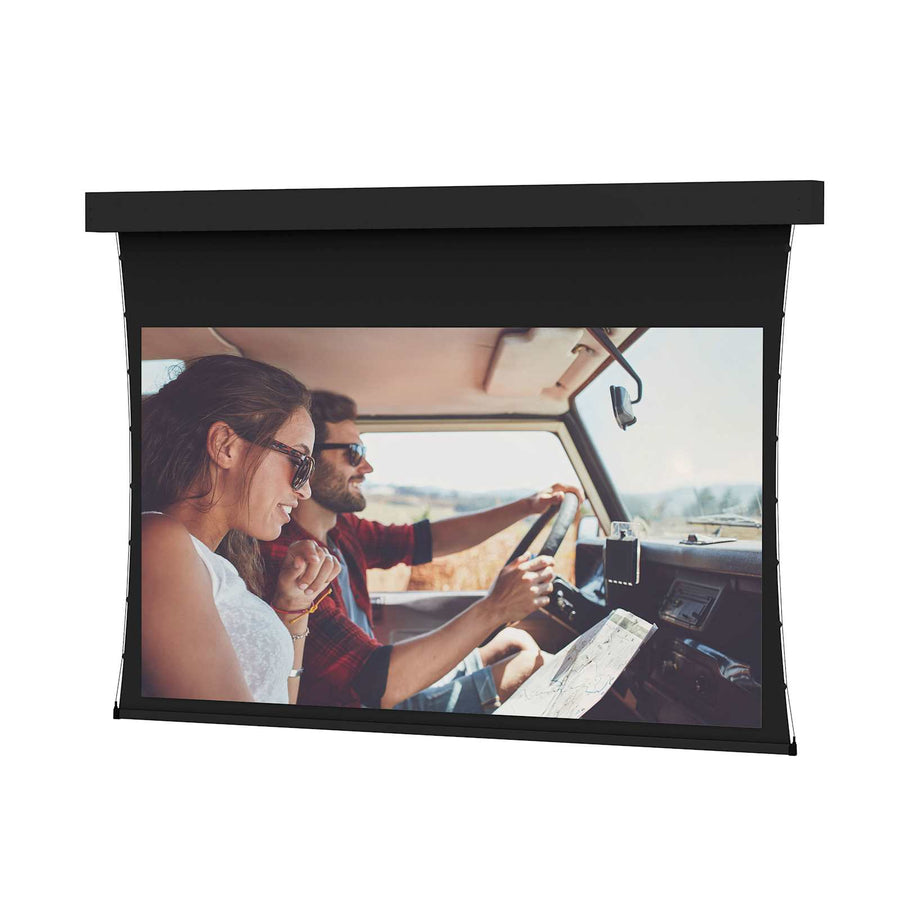

Da-Lite Tensioned Professional Electrol, 146" x 260" with HD Progressive 1.3 - 14156E
Large venue 146" x 260" (298" diagonal) projection screen with HD Progressive 1.3 surface and 220V motor
The Da-Lite 14156E is a Tensioned Professional Electrol series screen designed for large venue environments requiring high-quality front projection. This 146" x 260" (298" diagonal) screen features an HD Progressive 1.3 surface, engineered for high-resolution clarity. For international installations, this model is equipped with a 220V (50Hz) motor. The series utilizes the TruGuide™ Electric Screen Tensioning System and Smooth Roll Technology to ensure an optimal, perfectly flat viewing surface. This specific SKU features a black painted case and standard black backing, which helps retain projected brightness for front projection applications. The housing is constructed from wood and includes adjustable brackets that facilitate multiple installation methods: it can be ceiling recessed, wall mounted, or suspended from the ceiling. Note that this model does not include a ceiling trim flange or a painted automatic closure door; installers seeking the aesthetic of a white automatic closure door should consider the Tensioned Advantage Series instead.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 298 in (756.9 cm) |
| Screen Height | 146 in (370.8 cm) |
| Shipping Dimensions | 295.75" x 15.75" x 25.3" (751.2 x 40 x 64.3 cm) |
| Shipping Weight | 766.53 lbs (347.7 kg) |
| Size | 146" x 260" or 298" diagonal |
| Application | Ceiling Recessed |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 9
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.3 |
| TAA Compliant | Yes |
| UPC | 717068720107 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
What is the installation method for the Da-Lite 14156E?
This screen is versatile and can be ceiling recessed, wall mounted, or suspended from the ceiling using its included adjustable brackets.
Is the Da-Lite 14156E compatible with TAA requirements?
Yes, the 14156E is TAA Compliant and is manufactured in the US.
What electrical requirements does this screen have?
This specific SKU is configured with a 220V (50Hz) motor intended for export use.
What is the difference between this and the Tensioned Advantage Series?
This Tensioned Professional Electrol model does not include the ceiling trim flange or the painted automatic closure door found in the Advantage Series.
What accessories are needed for control of the 14156E?
You can utilize the Da-Lite Single Motor Low Voltage Control System (SKU 40973E) or a key operated switch for operational control.
