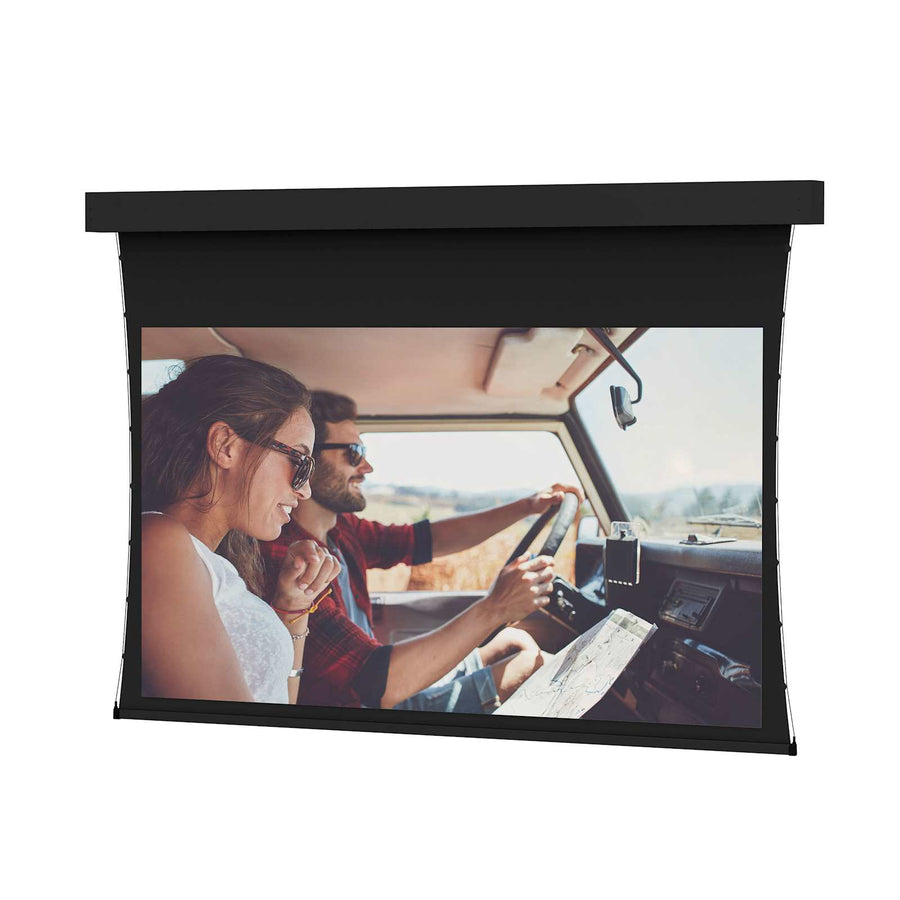

Da-Lite Tensioned Professional Electrol, 146" x 260" with HD Progressive 1.3 - 14156
Large venue tensioned electric screen, 146" x 260" (298" diagonal), featuring HD Progressive 1.3 surface for front projection
The Da-Lite 14156 is a Tensioned Professional Electrol® screen designed specifically for large venue installations. Measuring 146" x 260" with a 298" diagonal, this electric screen utilizes a high-resolution HD Progressive 1.3 surface designed for front projection. The unit features a black painted housing with a standard 120V (60Hz) motor and includes a three-position, Decora-style switch for control. The TruGuide™ Electric Screen Tensioning System and Smooth Roll Technology work together to maintain an optimal, perfectly flat viewing surface. This model is configured for ceiling recessed, wall mounted, or suspended applications. It is important to note that this specific SKU does not include a ceiling trim flange or a painted automatic closure door; for those features, installers should look to the Tensioned Advantage Series.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 298 in (756.9 cm) |
| Screen Height | 146 in (370.8 cm) |
| Shipping Weight | 881.23 lbs (399.7 kg) |
| Size | 146" x 260" or 298" diagonal |
| Application | Ceiling Recessed |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
All other specifications 6
| Screen Format | HDTV (16:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.3 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
What is the mounting requirement for the 14156 screen?
This screen is designed for ceiling recessed, wall mounted, or suspended installations using adjustable brackets on a wooden housing.
Does this screen include the closure door and trim?
No, this model does not include a ceiling trim flange or a painted automatic closure door.
What is the difference between this and the Tensioned Advantage Series?
The Tensioned Advantage Series includes an aesthetic white automatic closure door, whereas this Professional Electrol model does not.
What motor and voltage is required for installation?
The unit comes equipped with a standard 120V (60Hz) motor.
Which documents are available for submittals?
Installers can access the Tensioned Professional Specification Sheet, CSI 3-Part Specifications, and BIM/CAD models via the product resources.
