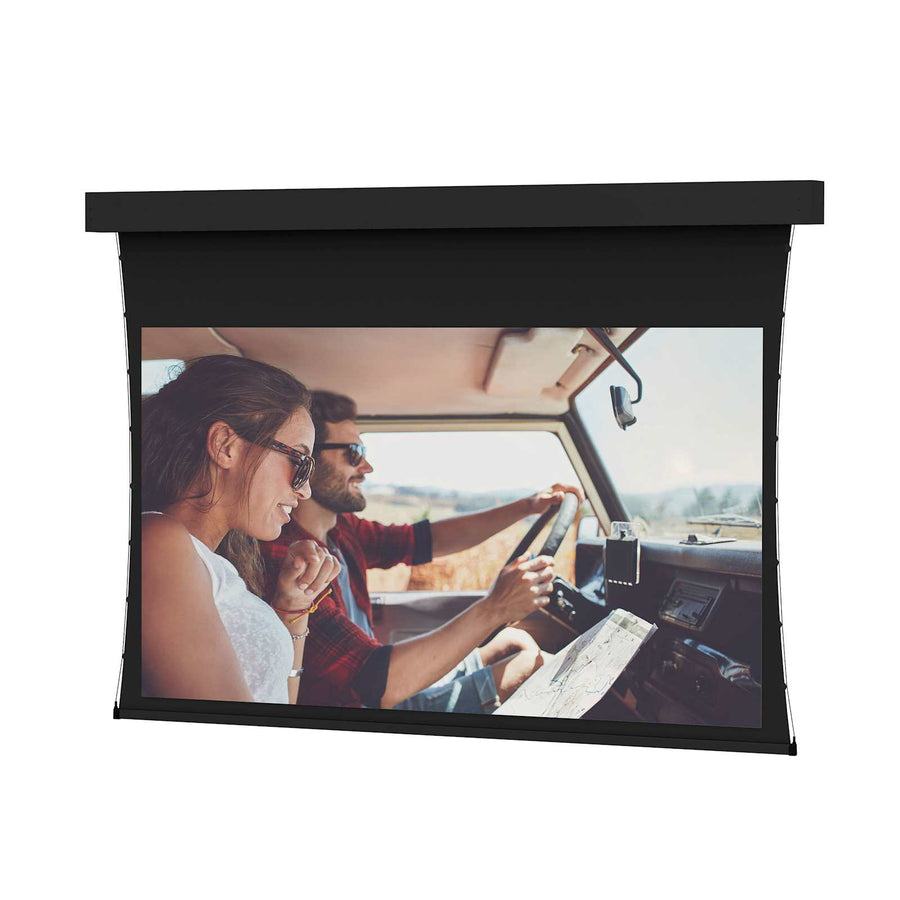

Da-Lite Tensioned Professional Electrol, 144" x 192" with Da-Mat - 99918
Large venue tensioned electric screen for front projection, 144" x 192" size with Da-Mat surface
The Da-Lite 99918 is a Tensioned Professional Electrol® screen designed for large venue installations. Measuring 144" x 192" with a 240" diagonal, this electric screen is optimized for front projection using the Da-Mat surface. It features a wooden housing equipped with adjustable brackets, providing flexibility for ceiling recessed, wall mounted, or suspended installations. To maintain a perfectly flat viewing area, the screen utilizes the TruGuide™ Electric Screen Tensioning System and Smooth Roll Technology. The housing includes a black painted case and a standard black backing to retain projected brightness. This unit operates on a standard 120V (60Hz) motor and is TAA compliant. Note that this specific model does not include a ceiling trim flange or a painted automatic closure door; installers seeking those aesthetic features should consider the Tensioned Advantage Series.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 240 in (609.6 cm) |
| Screen Height | 144 in (365.8 cm) |
| Shipping Weight | 711.97 lbs (322.9 kg) |
| Size | 144" x 192" or 240" diagonal |
| Application | Ceiling Recessed |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
All other specifications 6
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
How is the Da-Lite 99918 installed in a ceiling?
This model is designed for ceiling recessed, wall mounted, or suspended installation using the included adjustable brackets on its wooden housing.
What is the difference between this and the Tensioned Advantage Series?
The 99918 does not include a ceiling trim flange or a painted automatic closure door, whereas the Tensioned Advantage Series includes those features.
What additional control options are available for this screen?
You can add the Da-Lite Single Motor Low Voltage Control System (SKU 40973) or a Key Operated 110 Volt Switch (SKU 74490) for specialized control.
Will the Da-Lite 99918 work with front projection?
Yes, it is specifically designed for front projection and features a standard black backing to help retain brightness on the Da-Mat surface.
Which documentation is needed for a submittal?
Installers can refer to the Tensioned Professional Specification Sheet or the CSI 3-Part Specifications for technical submittals.
