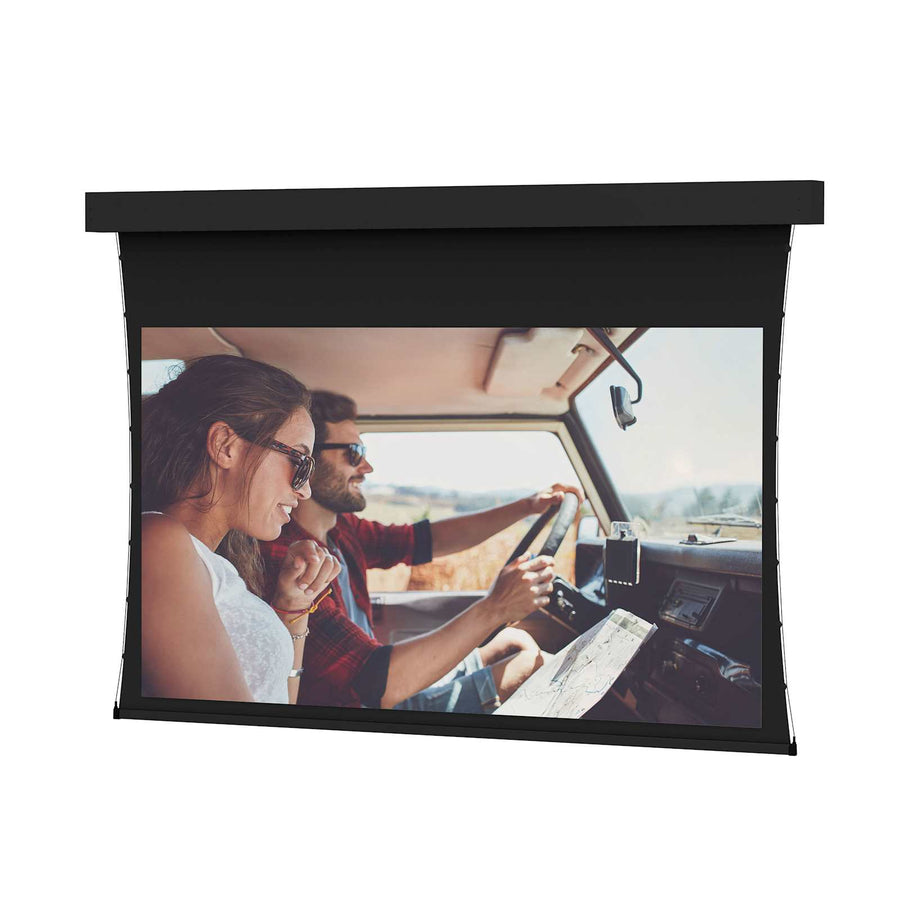

Da-Lite Tensioned Professional Electrol, 135" x 216" with HD Progressive 1.0 - 14178E
Tensioned professional electric projection screen for large venues, 135" x 216" with HD Progressive 1.0 surface and 220V motor
The Da-Lite 14178E is a Tensioned Professional Electrol series screen designed specifically for large venue installations. This electric screen features an HD Progressive 1.0 high-resolution surface and a 220V (50Hz) motor intended for export markets. The 135" x 216" (255" diagonal) wide 16:10 format screen utilizes TruGuide™ Electric Screen Tensioning and Smooth Roll Technology to maintain a perfectly flat, seamless viewing surface. For installation, the unit features a black painted wooden housing with adjustable brackets, making it suitable for ceiling recessed, wall mounted, or suspended configurations. It includes a standard black backing to help retain projected brightness on front projection surfaces. Note that this specific model does not include a ceiling trim flange or a painted automatic closure door; for those aesthetic features, installers should consider the Tensioned Advantage Series. This TAA compliant product is built for high-performance projection in professional environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 255 in (647.7 cm) |
| Screen Height | 135 in (342.9 cm) |
| Shipping Dimensions | 230" x 18" x 26" (584.2 x 45.7 x 66 cm) |
| Shipping Weight | 7.56 lbs (3.4 kg) |
| Size | 135" x 216" or 255" diagonal |
| Application | Ceiling Recessed |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 9
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive 1.0 |
| TAA Compliant | Yes |
| UPC | 717068756830 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
How does the 14178E install in a ceiling?
The 14178E is designed for ceiling recessed, wall mounted, or suspended applications using its included adjustable brackets and wooden housing.
What is the difference between this and the Tensioned Advantage Series?
Unlike the Tensioned Advantage Series, the 14178E does not include a painted automatic closure door or a ceiling trim flange.
Is the 14178E suitable for front projection?
Yes, this is a front projection screen that features a standard black backing to help maintain brightness on the surface.
What controls are compatible with this motor?
You can integrate the 14178E with accessories like the Da-Lite Single Motor Low Voltage Control System (40973E) or a key operated 110V switch (74490).
What do I need for a submittal for this screen?
For technical submittals, you can download the Tensioned Professional Electrol Product Information Sheet or the CSI 3-Part Specifications from the resources tab.
