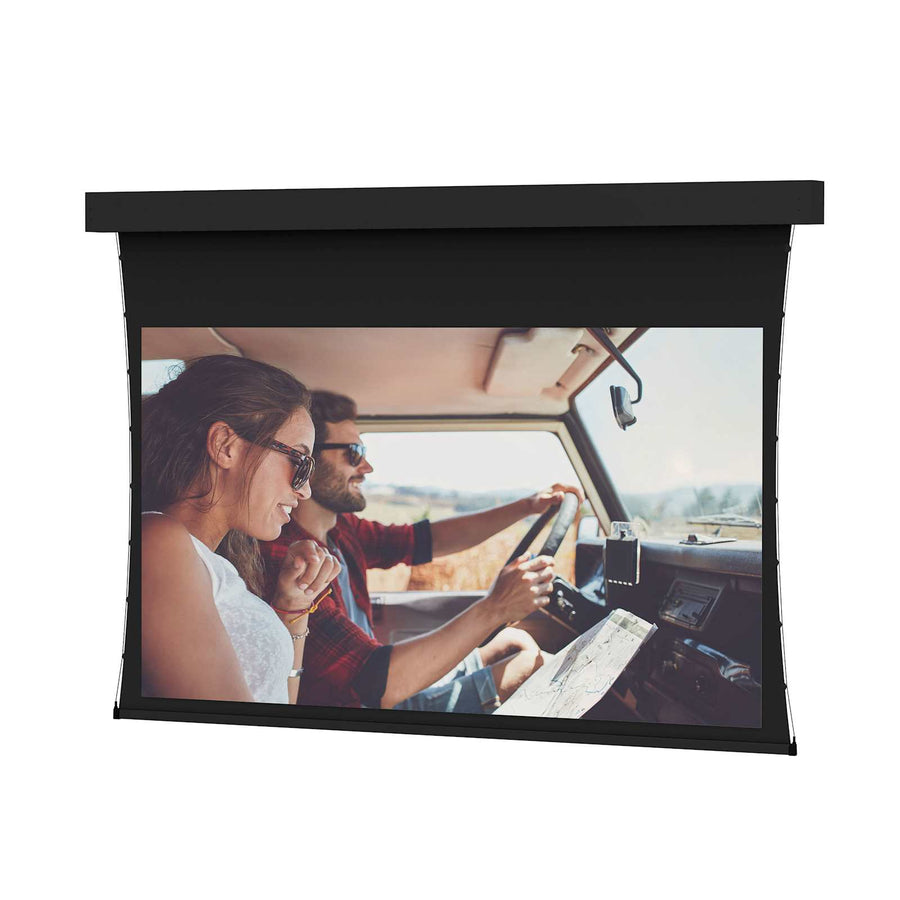

Da-Lite Tensioned Professional Electrol, 132" x 176" with Da-Mat - 99911
Large venue tensioned electric screen for front projection, featuring a 132" x 176" Da-Mat surface and 220" diagonal
The Da-Lite 99911 is a Tensioned Professional Electrol series screen designed specifically for large venue installations. This 132" x 176" (220" diagonal) electric screen is engineered for front projection applications and features a high-quality Da-Mat surface for standard resolution needs. The unit utilizes the TruGuide™ Electric Screen Tensioning System and Smooth Roll Technology to ensure a perfectly flat, seamless viewing surface. This model is equipped with a standard 120V (60Hz) motor and comes in a black painted wooden housing with adjustable brackets. This configuration allows for versatile mounting as a ceiling recessed, wall mounted, or suspended unit. The screen includes standard black backing to retain projected brightness and is TAA compliant. For installations requiring a white automatic closure door or ceiling trim flange, see the Tensioned Advantage Series.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 220 in (558.8 cm) |
| Screen Height | 132 in (335.3 cm) |
| Shipping Weight | 660.61 lbs (299.7 kg) |
| Size | 132" x 176" or 220" diagonal |
| Application | Ceiling Recessed |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
All other specifications 6
| Screen Format | Video (4:3) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
What are the dimensions for the Da-Lite 99911 screen?
The screen dimensions are 132" x 176", which provides a 220" diagonal viewing area.
How can this screen be mounted in a large venue?
The Tensioned Professional Electrol is designed for versatile installation; it can be ceiling recessed, wall mounted, or suspended from the ceiling using its adjustable brackets.
What is the difference between the 99911 and the Tensioned Advantage Series?
The 99911 does not include a ceiling trim flange or a painted automatic closure door, features that are available in the Tensioned Advantage Series.
What electrical requirements are needed for the motor?
This screen is equipped with a standard 120V (60Hz) motor.
Which documents are available for submittals?
Installers can access the Tensioned Professional Specification Sheet, CSI 3-Part Specifications, and BIM models for project integration.
