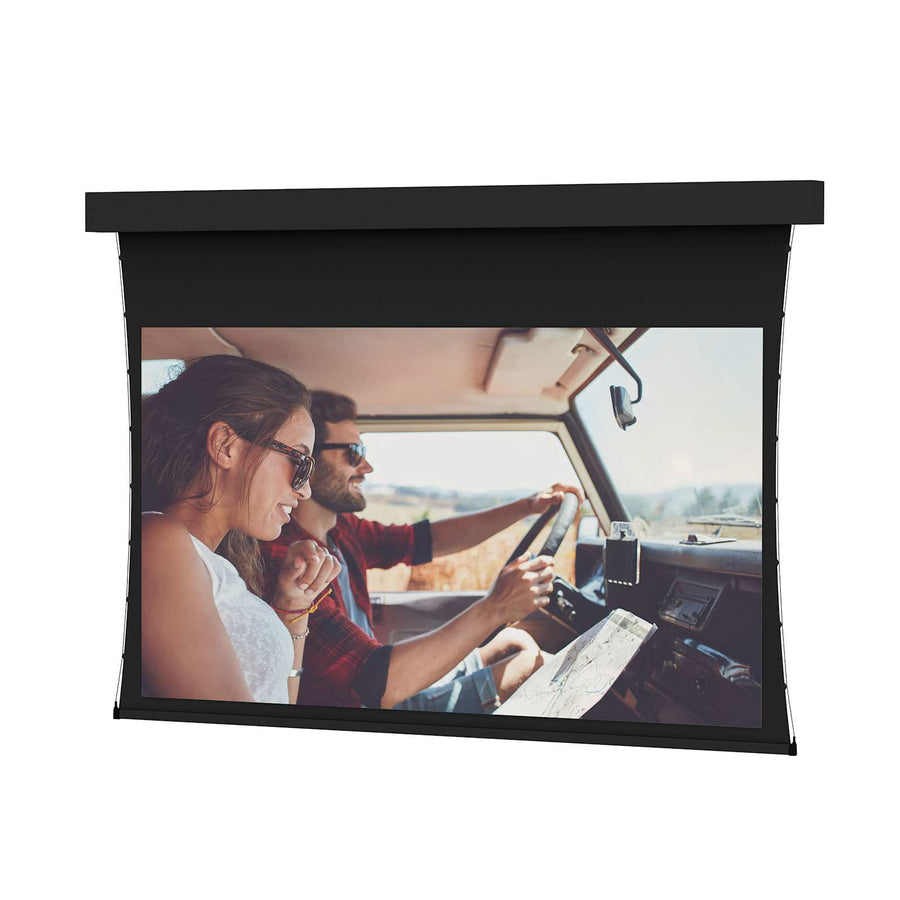

Da-Lite Tensioned Professional Electrol, 121" x 216" with Da-Mat - 35263E
Large venue 121" x 216" tensioned electric screen with Da-Mat surface and 220V (50Hz) motor
The Da-Lite 35263E is a Tensioned Professional Electrol series screen designed for large venue environments. This 121" x 216" (247" diagonal) unit is optimized for front projection and features the Da-Mat surface, which provides standard resolution performance. Because it is built for large-scale installs, it utilizes a wooden housing with adjustable brackets, allowing for ceiling recessed, wall mounted, or suspended configurations. This specific model is equipped with a 220V (50Hz) motor intended for export markets. The screen utilizes Smooth Roll Technology and the TruGuide™ Electric Screen Tensioning System to maintain an optimal, perfectly flat viewing surface. To maintain high contrast in professional settings, the unit includes a standard black backing to retain projected brightness. This SKU features a black painted case and a seamless surface, but does not include the ceiling trim flange or an automatic closure door; for those aesthetic features, installers should refer to the Tensioned Advantage Series.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 247 in (627.4 cm) |
| Screen Height | 121 in (307.3 cm) |
| Shipping Dimensions | 248.25" x 15.75" x 25.3" (630.6 x 40 x 64.3 cm) |
| Shipping Weight | 631.48 lbs (286.4 kg) |
| Size | 121" x 216" or 247" diagonal |
| Application | Ceiling Recessed |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 9
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| TAA Compliant | Yes |
| UPC | 717068042063 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Is the Da-Lite 35263E suitable for ceiling recessed installation?
Yes, this model is designed for ceiling recessed, wall mounted, or suspended applications using its included adjustable brackets.
What motor voltage does this specific SKU use?
This model is equipped with a 220V (50Hz) motor specifically designed for export markets.
Does this screen include a closure door for the housing?
No, this version does not include a painted automatic closure door; you would need the Tensioned Advantage Series for that feature.
What is the surface material for the 35263E?
The 35263E features the Da-Mat surface, which is a seamless surface designed for standard resolution front projection.
Which control accessories are compatible with this motor?
You can utilize the Da-Lite Single Motor Low Voltage Control System (40973E) or the Da-Lite Replacement Wall Switch White 220V (80575E).
