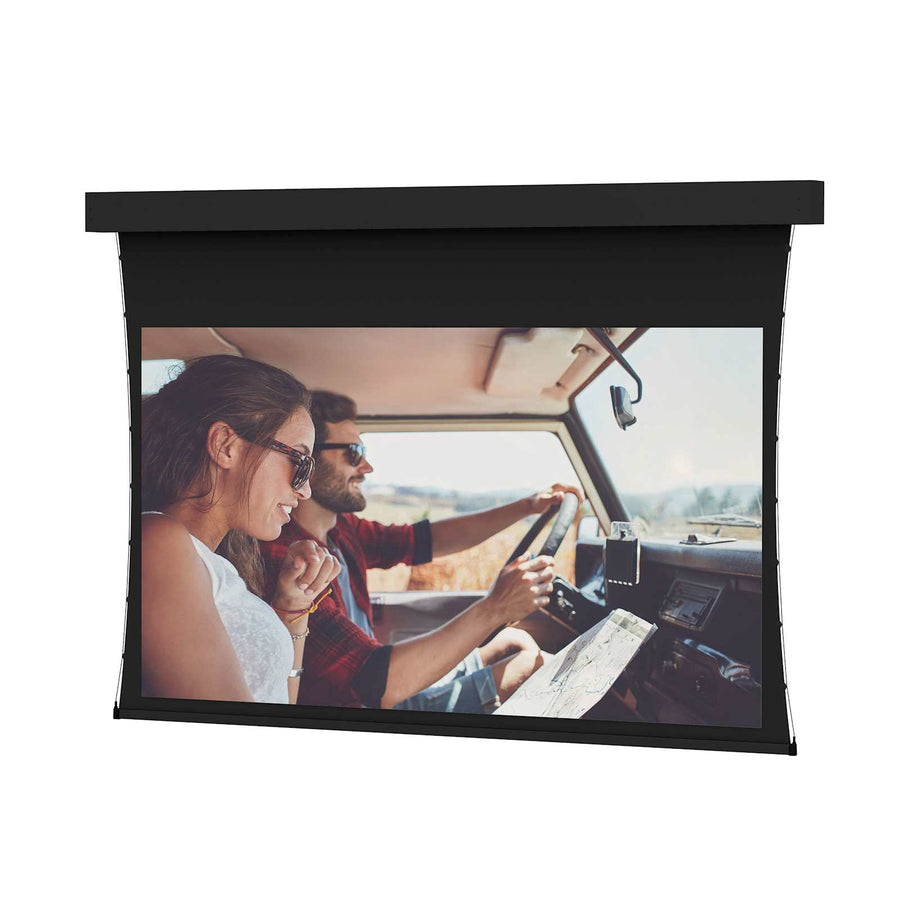

Da-Lite Tensioned Professional Electrol, 121" x 216" with Da-Mat - 35263
Large venue tensioned electric screen with Da-Mat surface, 121" x 216" (247" diagonal), for ceiling recessed, wall, or suspended installation
The Da-Lite 35263 is a large venue tensioned electric screen featuring a 121" x 216" (247" diagonal) projection area. This model utilizes the Da-Mat surface, which provides standard resolution for front projection applications. Designed for professional environments, the unit uses the TruGuide™ Electric Screen Tensioning System to maintain a smooth viewing surface and Smooth Roll Technology to ensure the screen remains perfectly flat during operation. This 16:9 HDTV format screen is TAA compliant and features a black painted housing with standard black backing to help retain projected brightness. This specific SKU is designed for ceiling recessed, wall mounted, or suspended installation, but it does not include the ceiling trim flange or a painted automatic closure door. For an aesthetic with a white automatic closure door, consider the Tensioned Advantage Series instead.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 247 in (627.4 cm) |
| Screen Height | 121 in (307.3 cm) |
| Shipping Weight | 725.93 lbs (329.3 kg) |
| Size | 121" x 216" or 247" diagonal |
| Application | Ceiling Recessed |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
All other specifications 6
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will this Da-Lite 35263 fit my projection setup?
This screen is designed for front projection with a 16:9 HDTV format and features a Da-Mat surface for standard resolution requirements.
What are the installation options for this screen?
The 35263 can be installed via ceiling recessed, wall mounting, or suspension from the ceiling using the included adjustable brackets.
What is the difference between this and the Tensioned Advantage Series?
This Professional Electrol model does not include a ceiling trim flange or a painted automatic closure door, unlike the Advantage Series.
What electrical requirements are needed for installation?
This model operates on a standard 120V (60Hz) motor and includes a three-position, Decora-style switch.
What accessories are compatible with this model?
You can add the Da-Lite Single Motor Low Voltage Control System (SKU 40973) or various replacement switches and locking cover plates.
