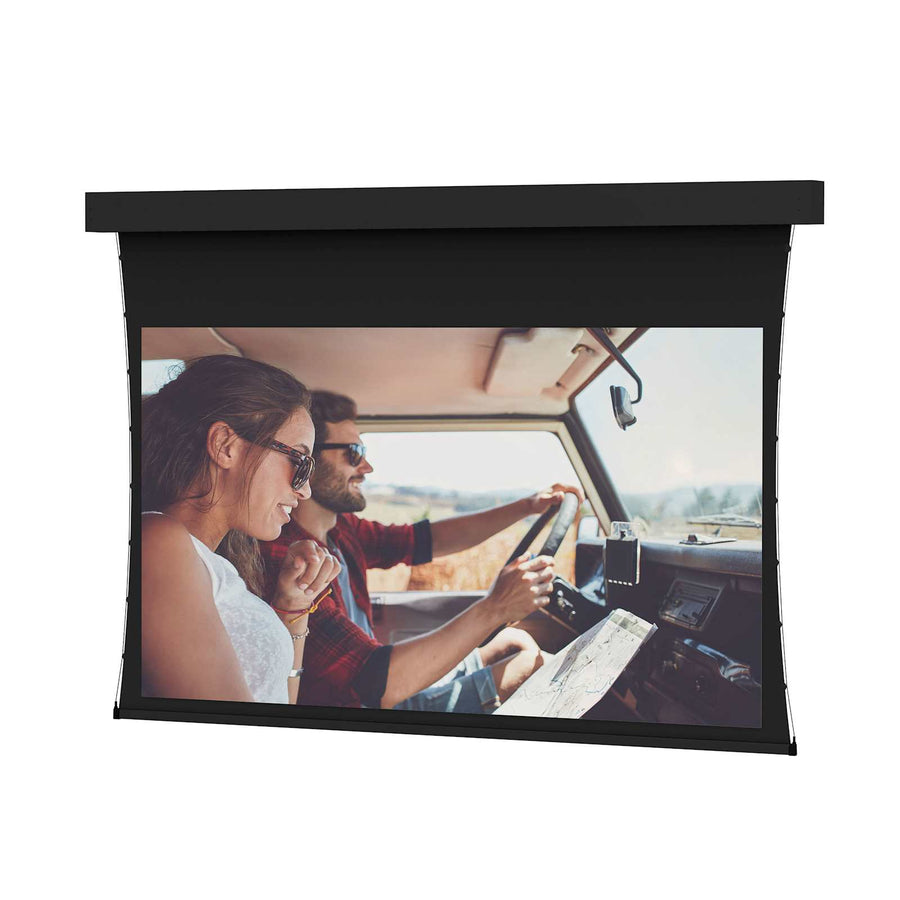

Da-Lite Tensioned Professional Electrol, 120" x 192" with Da-Mat - 14172E
Large venue 120" x 192" tensioned electric projection screen with Da-Mat surface and 220V motor for export
The Da-Lite 14172E is a high-performance Tensioned Professional Electrol screen designed for large venue applications. This electric screen features a 120" x 192" (226" diagonal) dimension and is configured with a 16:10 wide screen format. It utilizes the Da-Mat surface, which provides standard resolution for front projection. The TruGuide™ Electric Screen Tensioning System and Smooth Roll Technology work together to ensure an optimal, perfectly flat viewing surface. The unit is equipped with a 220V (50Hz) motor specifically for export markets and features a black painted case with standard black backing to maintain projected brightness. This TAA compliant model is designed for versatile mounting, including ceiling recessed, wall mounted, or suspended installations. Note that this specific SKU does not include a ceiling trim flange or a painted automatic closure door, which are available in the Tensioned Advantage Series.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 226 in (574 cm) |
| Screen Height | 120 in (304.8 cm) |
| Shipping Dimensions | 230" x 18" x 26" (584.2 x 45.7 x 66 cm) |
| Shipping Weight | 668 lbs (303 kg) |
| Size | 120" x 192" or 226" diagonal |
| Application | Ceiling Recessed |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 9
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| TAA Compliant | Yes |
| UPC | 717068722712 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
What mounting options are available for the Da-Lite 14172E?
This screen can be installed using ceiling recessed, wall mounted, or suspended mounting configurations depending on your venue requirements.
Is the Da-Lite 14172E TAA compliant?
Yes, this specific 14172E model is TAA compliant and is manufactured in the US.
What is the difference between this and the Tensioned Advantage Series?
Unlike the Tensioned Advantage Series, this 14172E model does not include a painted automatic closure door or a ceiling trim flange.
What kind of motor is used for this export model?
The 14172E is equipped with a 220V (50Hz) motor designed for use in export markets.
What accessories are compatible with the 14172E?
Compatible accessories include the Da-Lite Single Motor Low Voltage Control System (40973E) and various switch plates like the 98837 or 80575E.
