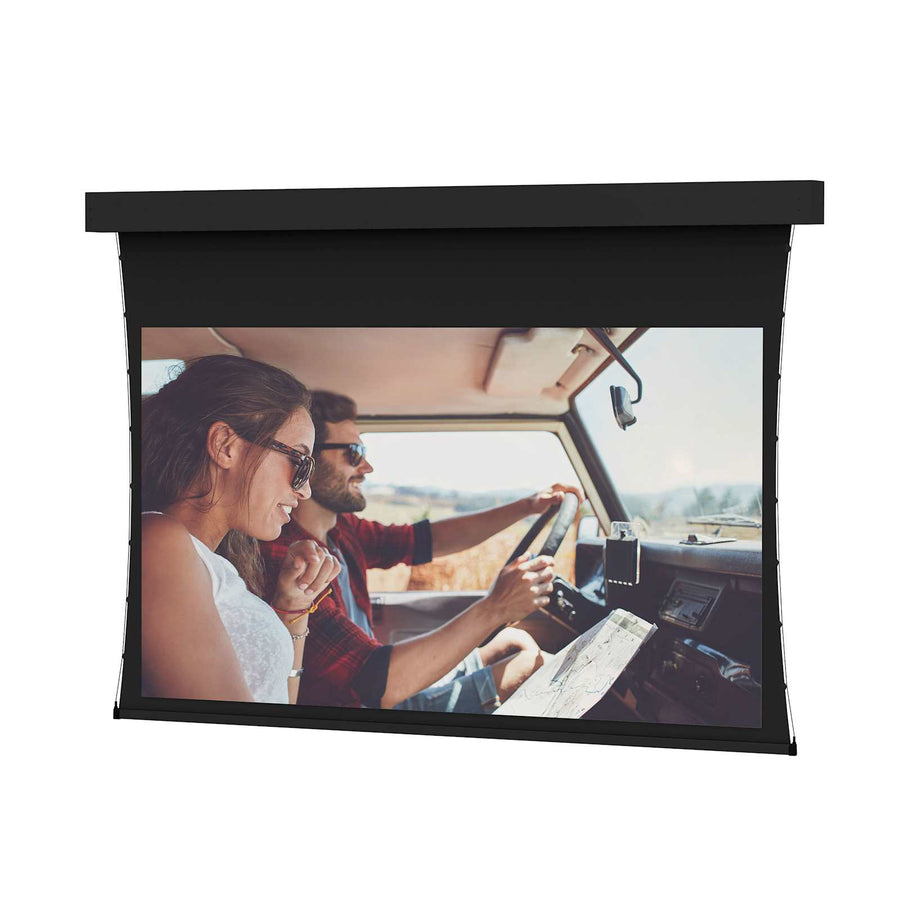

Da-Lite Tensioned Professional Electrol, 110" x 176" with HD Progressive ReView 0.9 - 14165E
Tensioned electric rear projection screen, 110" x 176" (208" diagonal) with HD Progressive ReView 0.9 surface and 220V motor
The Da-Lite 14165E is a Tensioned Professional Electrol series screen designed for large venue applications. This 110" x 176" (208" diagonal) electric screen features a 16:10 wide aspect ratio and utilizes the HD Progressive ReView 0.9 surface. Built for professional environments, it is equipped with a 220V (50Hz) motor intended for export markets. The TruGuide™ Electric Screen Tensioning System works in tandem with Smooth Roll Technology to maintain an optimal, perfectly flat viewing surface. For rear projection setups, the standard black backing helps retain projected brightness on the front surface. This specific SKU features a black painted housing and does not include a ceiling trim flange or a painted automatic closure door. For installations requiring an aesthetic white automatic closure door, installers should look to the Tensioned Advantage Series instead. This TAA compliant unit is manufactured in the US.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 208 in (528.3 cm) |
| Screen Height | 110 in (279.4 cm) |
| Shipping Dimensions | 214" x 18" x 26" (543.6 x 45.7 x 66 cm) |
| Shipping Weight | 615 lbs (279 kg) |
| Size | 110" x 176" or 208" diagonal |
| Application | Ceiling Recessed |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 9
| Projection Type | Rear Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive ReView 0.9 |
| TAA Compliant | Yes |
| UPC | 717068721913 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
What is the projection type for the Da-Lite 14165E?
This screen is designed for rear projection applications using the HD Progressive ReView 0.9 surface.
Does this screen include a closure door for ceiling recessed installs?
This SKU does not include a painted automatic closure door or a ceiling trim flange; these are available on the Tensioned Advantage Series.
What motor voltage is required for the 14165E?
The unit is equipped with a 220V (50Hz) motor specifically for export use.
How is the screen tensioned to prevent wrinkles?
It utilizes the TruGuide™ Electric Screen Tensioning System and Smooth Roll Technology to maintain a smooth, flat viewing surface.
Is this screen TAA compliant for government contracts?
Yes, the Da-Lite 14165E is TAA compliant and is manufactured in the United States.
