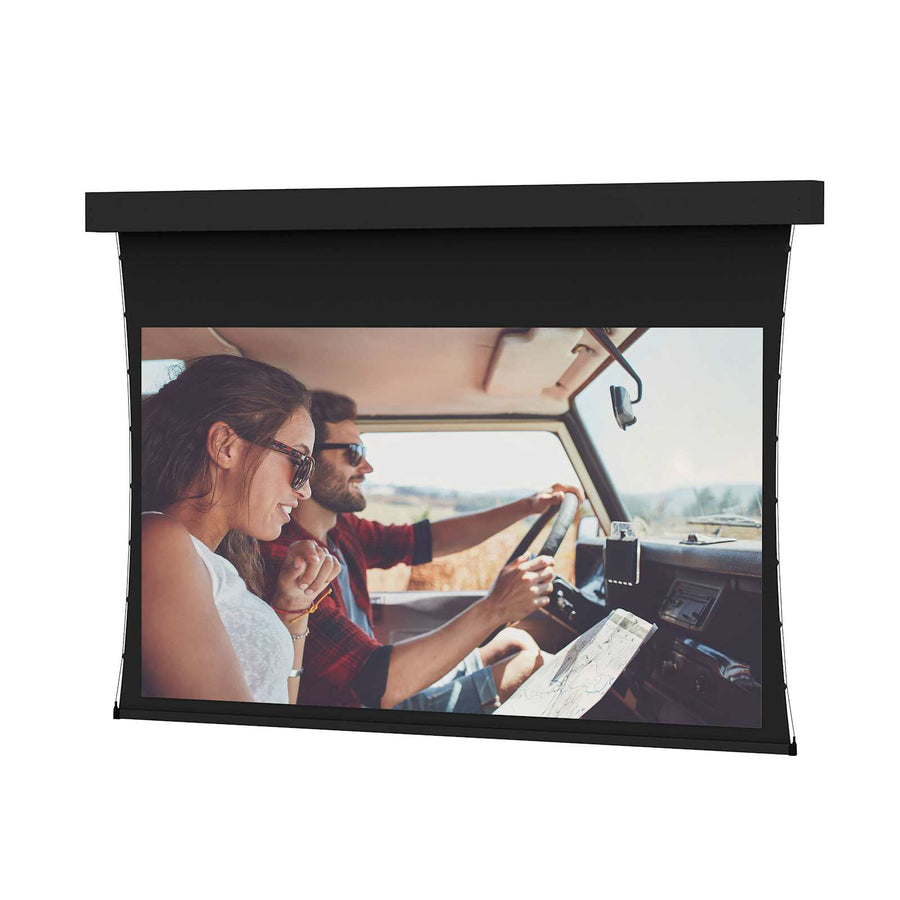

Da-Lite Tensioned Professional Electrol, 110" x 176" with HD Progressive ReView 0.9 - 14165
Rear projection screen with HD Progressive ReView 0.9 surface, 110" x 176" dimensions, and TAA compliance
The Da-Lite 14165 is a large venue Tensioned Professional Electrol screen measuring 110" x 176" with a 208" diagonal. Designed for high-impact environments, this electric screen utilizes an HD Progressive ReView 0.9 surface and is configured for rear projection. It features Smooth Roll Technology to maintain a perfectly flat viewing surface and incorporates the TruGuide™ Electric Screen Tensioning System to ensure optimal surface smoothness. This model is housed in a black painted wooden case with adjustable brackets, making it suitable for ceiling recessed, wall mounted, or suspended installations. While this unit is built for professional large venue use, please note that it does not include the ceiling trim flange or a painted automatic closure door; installers looking for the white automatic closure door should consider the Tensioned Advantage Series. This SKU is TAA compliant and is powered by a standard 120V (60Hz) motor.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 208 in (528.3 cm) |
| Screen Height | 110 in (279.4 cm) |
| Shipping Weight | 615 lbs (279 kg) |
| Size | 110" x 176" or 208" diagonal |
| Application | Ceiling Recessed |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Projection Type | Rear Projection |
All other specifications 6
| Screen Format | Wide (16:10) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | HD Progressive ReView 0.9 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will the 14165 fit my rear projection setup?
Yes, this 14165 model is specifically configured for rear projection and includes a standard black backing to retain projected brightness on the front surface.
What mounting options are available for the 14165?
The Tensioned Professional Electrol can be installed via ceiling recessed, wall mounted, or suspended from the ceiling using its adjustable brackets.
What is the difference between this and the Tensioned Advantage Series?
This series features a black painted case and does not include a ceiling trim flange or a white automatic closure door, which are available in the Tensioned Advantage Series.
What electrical requirements are needed for installation?
This screen utilizes a standard 120V (60Hz) motor and comes with a three-position, Decora-style switch for operation.
What additional controls can I add to this screen?
You can integrate compatible accessories such as the Da-Lite Single Motor Low Voltage Control System (SKU 40973) or a Key Operated 110 Volt Switch (SKU 74490).
