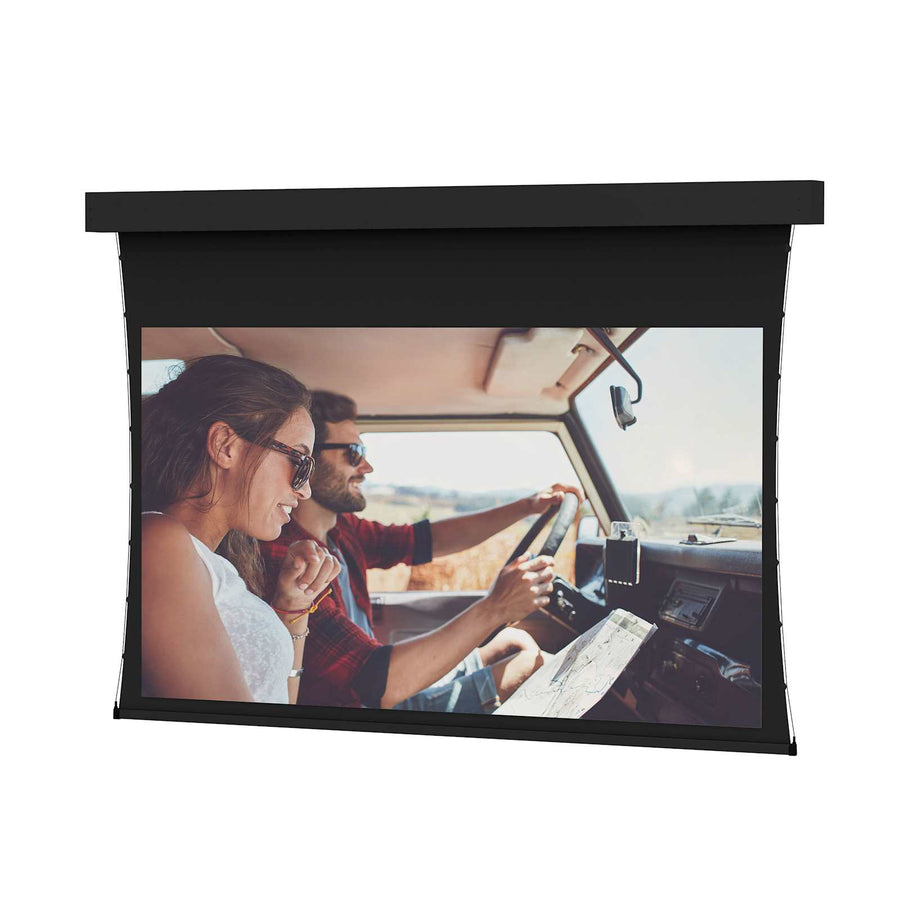

Da-Lite Tensioned Professional Electrol, 110" x 176" with Da-Mat - 14163E
Large venue tensioned projection screen with Da-Mat surface, 110" x 176" dimensions and 208" diagonal for front projection
The Da-Lite 14163E is a Tensioned Professional Electrol series screen designed for large venue installations. This electric projection screen features a 110" x 176" size (208" diagonal) and is configured with the Da-Mat surface for standard resolution front projection. Utilizing TruGuide™ Electric Screen Tensioning System technology, the screen maintains an optimal, smooth viewing surface. Smooth Roll Technology is integrated to ensure the screen remains perfectly flat during operation. The unit is equipped with a 220V (50Hz) motor for export markets and includes a black painted case with standard black backing to retain projected brightness. This TAA compliant model is designed for ceiling recessed, wall mounted, or suspended applications. Note that this specific configuration does not include a ceiling trim flange or a painted automatic closure door; installers looking for those features should consider the Tensioned Advantage Series instead.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 208 in (528.3 cm) |
| Screen Height | 110 in (279.4 cm) |
| Shipping Dimensions | 214" x 18" x 26" (543.6 x 45.7 x 66 cm) |
| Shipping Weight | 615 lbs (279 kg) |
| Size | 110" x 176" or 208" diagonal |
| Application | Ceiling Recessed |
| Federal Ops Country of Origin | US |
| Motor | 220V (50Hz) for Export |
All other specifications 9
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| TAA Compliant | Yes |
| UPC | 717068721746 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will the Da-Lite 14163E fit my front projection setup?
Yes, this 110" x 176" (208" diagonal) screen is designed specifically for front projection using a Da-Mat surface for standard resolution.
What mounting options are available for the 14163E?
The Tensioned Professional Electrol is designed for ceiling recessed, wall mounted, or suspended installations using its adjustable brackets.
What is the difference between this and the Tensioned Advantage Series?
The 14163E does not include the ceiling trim flange or the painted automatic closure door found on the Tensioned Advantage Series.
Is the Da-Lite 14163E TAA compliant?
Yes, this model is TAA compliant, making it suitable for various federal and international installation requirements.
What additional controls can I use with this screen?
You can pair this with the Da-Lite Single Motor Low Voltage Control System 220 Volt (40973E) or a Key Operated 110 Volt Switch (74490).
