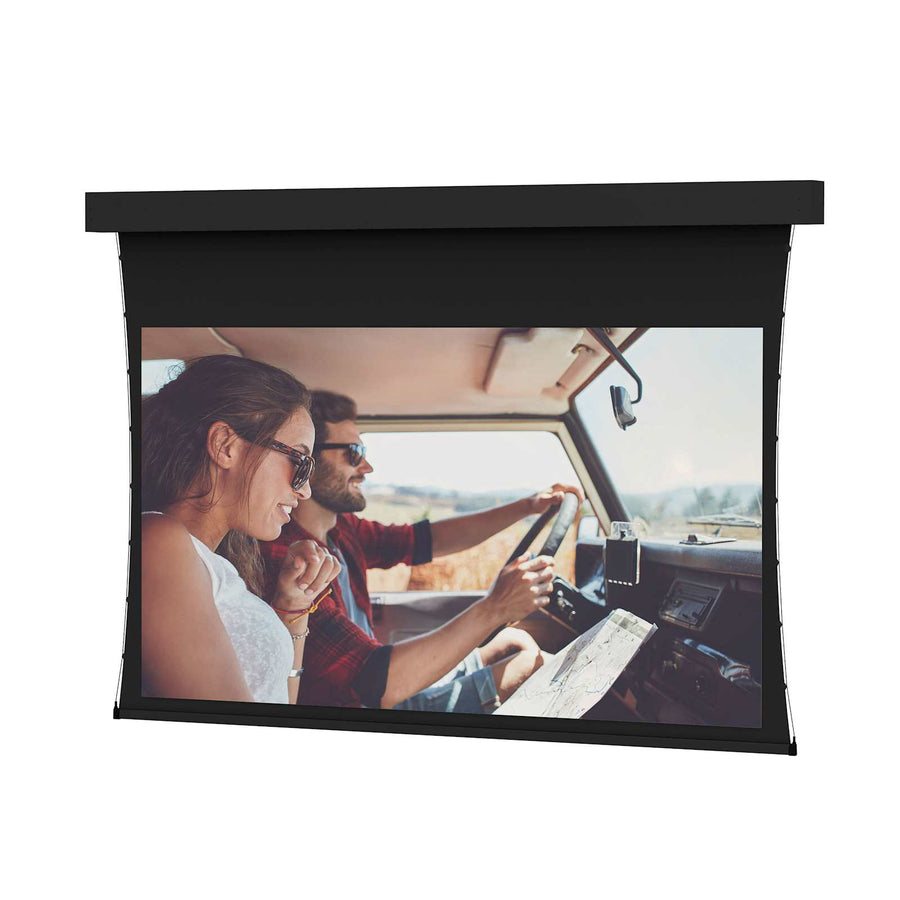

Da-Lite Tensioned Professional Electrol, 108" x 192" with Da-Mat - 99932
Large venue tensioned projection screen featuring a 108" x 192" Da-Mat surface and TruGuide™ electric tensioning system
The Da-Lite 99932 is a Tensioned Professional Electrol® screen designed specifically for large venue environments. This electric screen utilizes the TruGuide™ Electric Screen Tensioning System to ensure an optimal, smooth viewing surface, while Smooth Roll Technology maintains a perfectly flat screen during use. The unit features a black painted wooden housing with adjustable brackets, making it suitable for ceiling recessed, wall mounted, or suspended installations. This specific model utilizes the Da-Mat surface designed for standard resolution front projection. It is important to note that this configuration does not include the ceiling trim flange or the painted automatic closure door found in the Tensioned Advantage Series. Instead, it features a standard 120V (60Hz) motor and a three-position, Decora-style switch for manual control. With a screen size of 108" x 192" (220" diagonal), it provides a high-quality, seamless surface for professional large-scale presentations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 220 in (558.8 cm) |
| Screen Height | 108 in (274.3 cm) |
| Shipping Weight | 688.74 lbs (312.4 kg) |
| Size | 108" x 192" or 220" diagonal |
| Application | Ceiling Recessed |
| Federal Ops Country of Origin | US |
| Motor | Standard 120V (60Hz) |
| Projection Type | Front Projection |
All other specifications 6
| Screen Format | HDTV (16:9) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Special Features | Large Venue |
| Surface | Da-Mat |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will the 99932 screen fit my specific display configuration?
This 99932 model is designed for front projection in large venue settings. It features a 108" x 192" screen format with a 220" diagonal and is compatible with ceiling recessed, wall mounted, or suspended installation methods.
What is the difference between this and the Tensioned Advantage Series?
Unlike the Tensioned Advantage Series, the 99932 does not include a ceiling trim flange or a painted automatic closure door.
What electrical requirements are needed for installation?
This screen is equipped with a standard 120V (60Hz) motor. It is TAA compliant for projects requiring compliance with federal operations standards.
What additional accessories can I purchase for this screen?
You can add specialized controls or protection, such as the Da-Lite 98837 Locking Switch Cover Plate, the 74490 Key Operated 110 Volt Switch, or the 40973 Single Motor Low Voltage Control System.
Where can I find the submittal documentation for this model?
Installers can access the Tensioned Professional Specification Sheet, the CSI 3-Part Specifications, or the Tensioned Professional Electrol Parts List via the resources tab for submittals.
