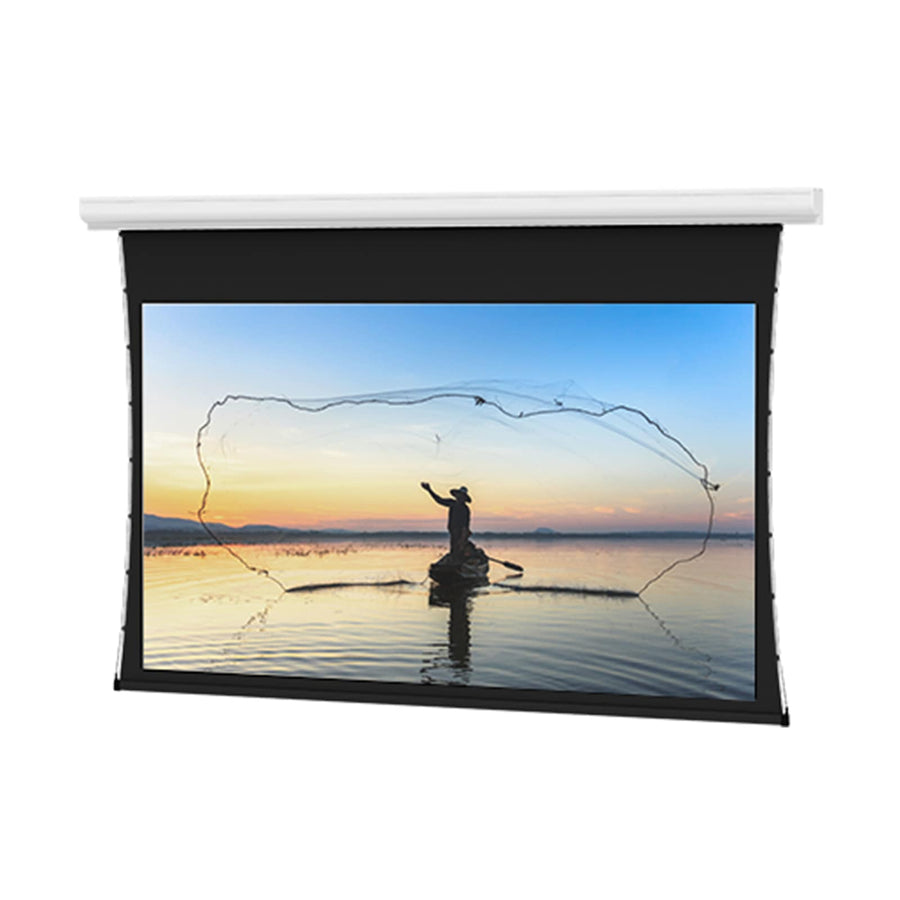

Da-Lite Tensioned Designer Contour Electrol, 57.5" x 92" with Da-Mat - 14566
Tensioned electric screen for ceiling or wall mounting, 57.5" x 92" (109" diagonal) with Da-Mat surface and Agility battery motor
The Da-Lite 14566 is a Tensioned Designer Contour Electrol screen designed for flexible installation in environments where traditional electrical wiring is difficult or prohibited. This 57.5" x 92" (109" diagonal) screen features a Wide 16:10 format and is supplied with a Da-Mat surface designed for standard resolution front projection. Because it utilizes the Agility Battery Motor (Lithium-Ion), this unit is operational out of the box without the need for an electrician or dedicated power wiring. The motor can achieve over 200 cycles on a single charge via a micro USB port. For continuous use, the Da-Lite PoE 5V Micro USB Adapter (14856) can be used to keep the battery charged between uses. This TAA compliant screen can be mounted to either a ceiling or a wall, making it a versatile solution for retrofitting historic buildings or conferencing spaces where wiring flexibility is required. The housing has a compact profile, measuring 4 5/8" high and 4 3/32" deep, finished in white powder-coated aluminum.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 109 in (276.9 cm) |
| Screen Height | 57.5 in (146.1 cm) |
| Shipping Weight | 56.5 lbs (25.6 kg) |
| Size | 57.5" x 92" or 109" diagonal |
| Application | CeilingWall |
| Built-In Control | Battery |
| Federal Ops Country of Origin | US |
| Motor | Agility Battery Motor (Lithium-Ion) |
All other specifications 6
| Projection Type | Front Projection |
| Screen Format | Wide (16:10) |
| Screen Surface Features | Standard Resolution |
| Screen Type | Electric |
| Surface | Da-Mat |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
How do I power the Agility Battery Motor in the 14566?
The motor is powered by a built-in Lithium-Ion battery that is recharged via a micro USB port. For maintenance-free operation, you can use the Da-Lite PoE 5V Micro USB Adapter (part 14856) to keep the battery charged.
Can I control this screen via a mobile app?
Yes, when paired with the Da-Lite WiFi Bridge (part 14701), you can control the screen up and down and monitor battery life via a mobile app.
What is the screen format and surface type for this SKU?
This model features a Wide 16:10 screen format with a Da-Mat surface designed for standard resolution front projection.
Is the Da-Lite 14566 TAA compliant?
Yes, this product is TAA compliant, making it suitable for projects requiring specific federal acquisition regulations.
What is the installation requirement for the 14566?
This is an electric screen that can be ceiling or wall-mounted. Because it uses a battery motor, it can be installed without dedicated electrical wiring.
