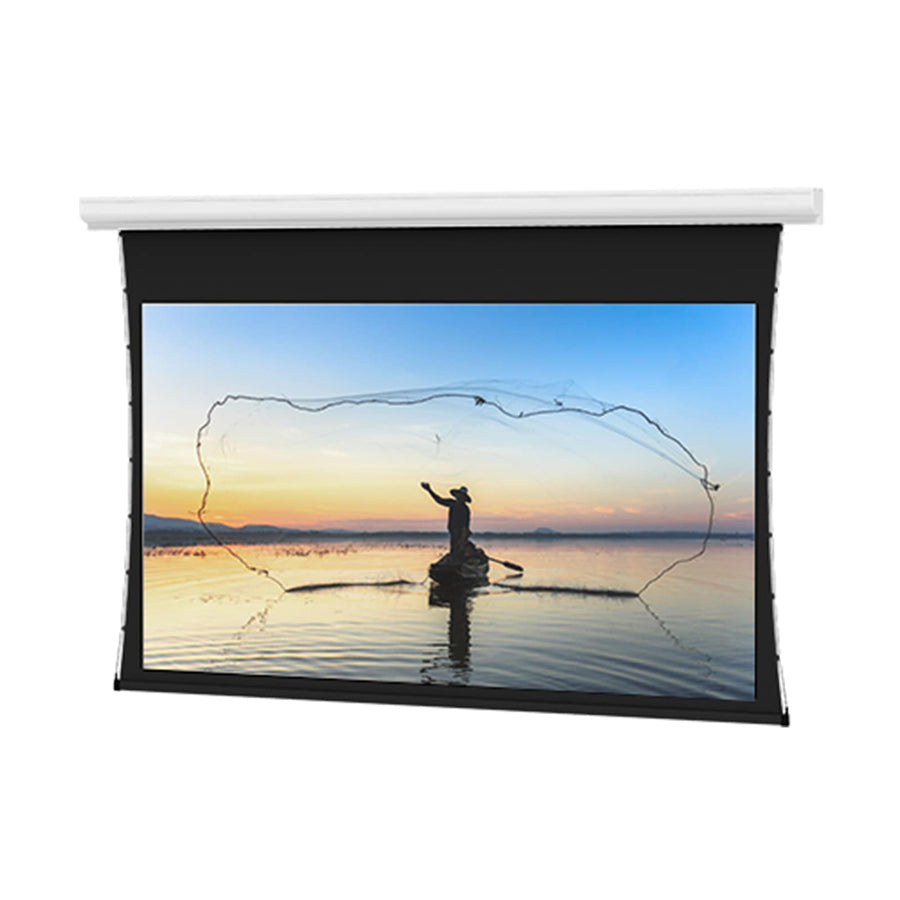

Da-Lite Tensioned Designer Contour Electrol, 54" x 96" with HD Progressive 1.0 - 14540
110" diagonal electric tensioned screen with HD Progressive 1.0 surface and battery-operated motor for ceiling or wall mounting
The Da-Lite 14540 Tensioned Designer Contour Electrol is a motorized projection screen designed for both ceiling and wall mounting applications. This 54" x 96" unit features an HD Progressive 1.0 high-resolution surface and is configured for 16:9 HDTV aspect ratios. It is powered by the Agility Battery Motor, a lithium-ion motor that provides flexible installation in environments where hardwiring electricity is difficult or prohibited, such as historic buildings. This motor can complete over 200 cycles on a single charge via a micro USB port. For permanent installations, the Da-Lite 14540 can be paired with the 14856 PoE 5V micro USB adapter to maintain a constant charge. This TAA compliant screen includes a white powder-coated aluminum finish and a slim 4 5/8” high by 4 3/32” deep housing. Front projection is the intended application for this high-resolution screen.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Screen Diagonal | 110 in (279.4 cm) |
| Screen Height | 54 in (137.2 cm) |
| Shipping Weight | 58.25 lbs (26.4 kg) |
| Size | 54" x 96" or 110" diagonal |
| Application | CeilingWall |
| Built-In Control | Battery |
| Federal Ops Country of Origin | US |
| Motor | Agility Battery Motor (Lithium-Ion) |
All other specifications 6
| Projection Type | Front Projection |
| Screen Format | HDTV (16:9) |
| Screen Surface Features | High Resolution |
| Screen Type | Electric |
| Surface | HD Progressive 1.0 |
| Certifications | TAA |
Resources
You'll need these with it
Questions about this part
Will the Da-Lite 14540 work without an electrician?
Yes, the Agility Battery Motor uses a lithium-ion battery that can be charged via a micro USB port, allowing for installation without dedicated electrical wiring.
How long does the battery last on a single charge?
The lithium-ion Agility motor is capable of lasting over 200 cycles on a single charge before requiring a recharge.
What accessories are needed to keep the battery charged for permanent use?
You can use the Da-Lite 14856 PoE 5V Micro USB Adapter to keep the battery charged between uses for maintenance-free operation.
Can I control the screen via a mobile app?
Yes, by adding the Da-Lite 14701 WiFi Bridge, you can control the screen and monitor battery life through a mobile application.
Is this screen suitable for 16:10 wide aspect ratios?
While this specific 14540 model is configured for 16:9 HDTV, the Tensioned Designer Contour Electrol series is also available in 16:10 Wide formats.
